Brand: Mollificio Bordignon

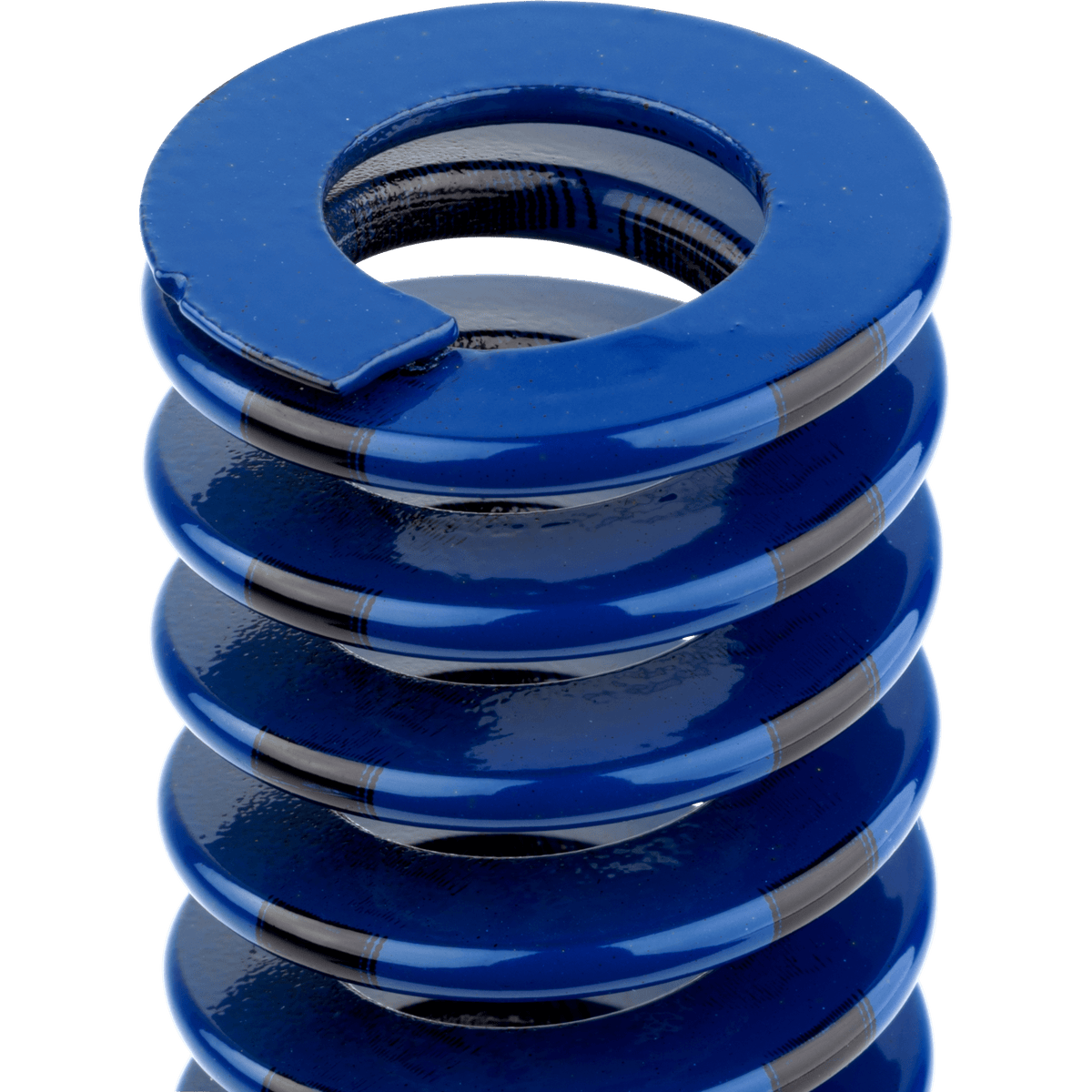

Mollificio Bordignon USB32305 USB Medium Load Die Springs
SKU: BD-USB32305
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB32305 USB Medium Load Die Springs
Built to excel in performance-critical applications, the Mollificio Bordignon USB32305 die spring ensures consistent force and reliability. With housing diameter inches 1 1/4; housing diameter inches 5/8; free length inches 12; rate lbs/0; 1 inch 6.0, it delivers optimal flexibility, stability, and precision in die applications. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 1 1/4 |
| d (Rod diameter inches): | 5/8 |
| Lo (Free length inches): | 12 |
| R (Rate lbs/0,1 inch): | 6.0 |
| S1 (Stroke inches for 30% Lo): | 3.00 |
| F1 (Load lbs for 30% Lo): | 180.0 |
| S2 (Stroke inches for 40% Lo): | 4.20 |
| F2 (Load inches for 40% Lo): | 252.0 |
| S3 (Stroke inches for 25% Lo): | 4.80 |
| F3 (Load inches for 25% Lo): | 288.0 |
| Smax (Max Stroke inches): | 6.00 |
Comparable Springs:
Special Springs: RMBL32-305
Danly: M49L
Raymond: 103-648
Moeller: OLS125-1200
