Brand: Mollificio Bordignon

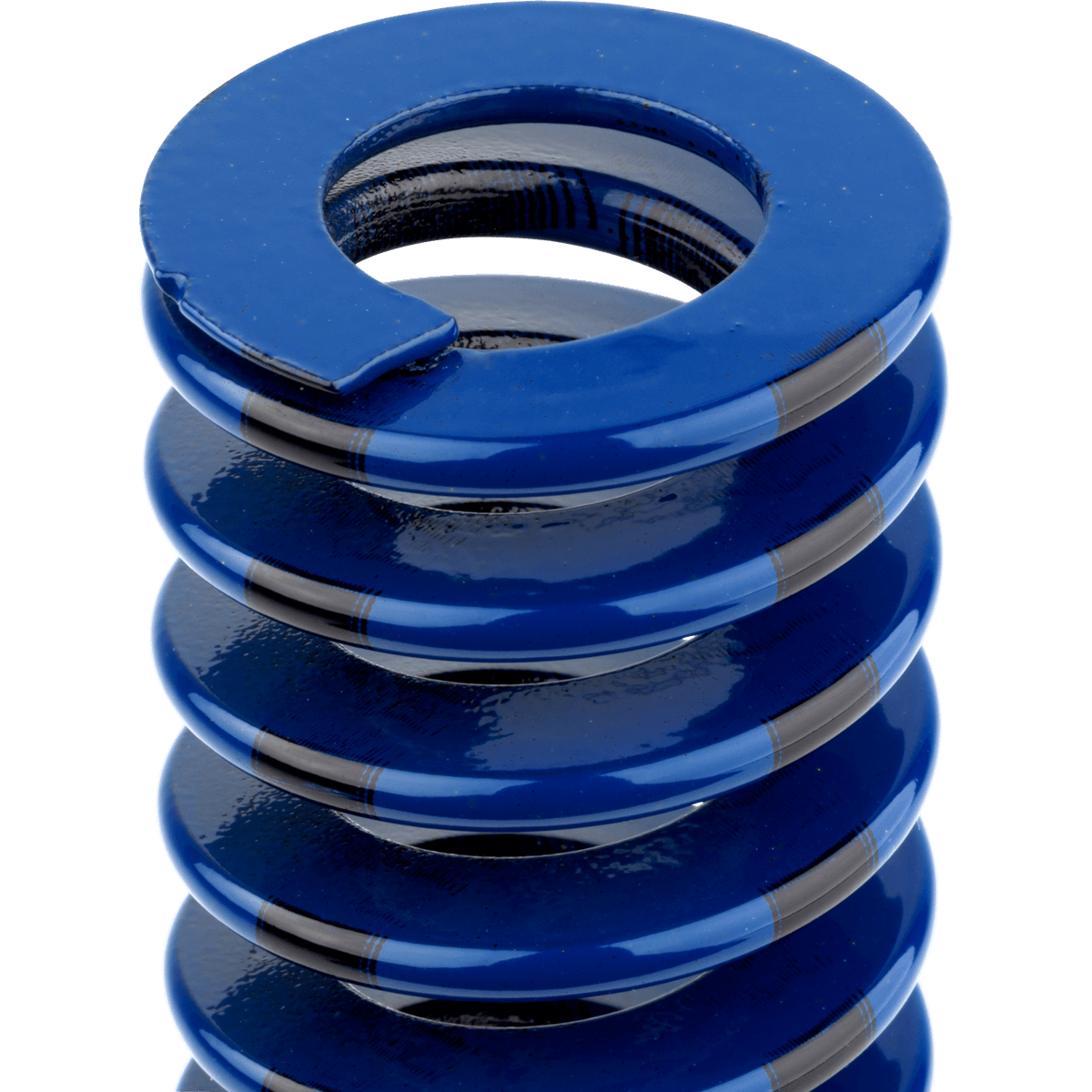

Mollificio Bordignon USB19102 USB Medium Load Die Springs
SKU: BD-USB19102
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB19102 USB Medium Load Die Springs
From Mollificio Bordignon's renowned ISO 10243 series, the USB19102 die spring stands out for accuracy, stability, and trusted performance. It features housing diameter inches 3/4; housing diameter inches 3/8; free length inches 4; rate lbs/0; 1 inch 7.5 - ensuring steady load response and excellent compression consistency. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 3/4 |
| d (Rod diameter inches): | 3/8 |
| Lo (Free length inches): | 4 |
| R (Rate lbs/0,1 inch): | 7.5 |
| S1 (Stroke inches for 30% Lo): | 1.00 |
| F1 (Load lbs for 30% Lo): | 75.0 |
| S2 (Stroke inches for 40% Lo): | 1.40 |
| F2 (Load inches for 40% Lo): | 105.0 |
| S3 (Stroke inches for 25% Lo): | 1.60 |
| F3 (Load inches for 25% Lo): | 120.0 |
| Smax (Max Stroke inches): | 2.00 |
Comparable Springs:
Special Springs: RMBL19-102
Danly: M15L
Raymond: 103-416
Moeller: OLS075-300
