Brand: Mollificio Bordignon

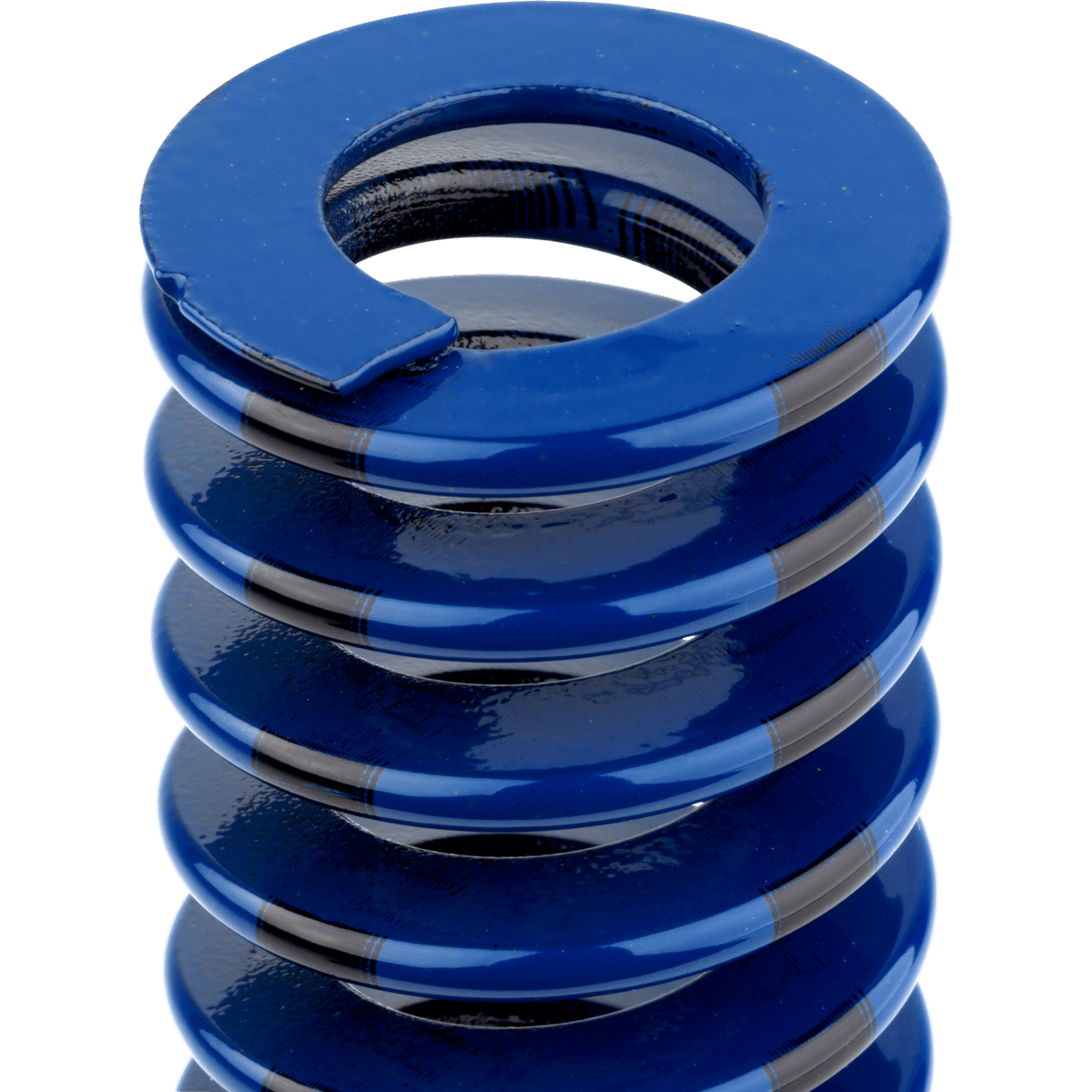

Mollificio Bordignon USB19089 USB Medium Load Die Springs
SKU: BD-USB19089
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB19089 USB Medium Load Die Springs
Engineered by Mollificio Bordignon, the USB19089 die spring spring offers superior dimensional control and fatigue resistance for industrial use. Its specifications - housing diameter inches 3/4; housing diameter inches 3/8; free length inches 3 1/2; rate lbs/0; 1 inch 8.3 - support efficiency and repeatable performance in tooling environments. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 3/4 |
| d (Rod diameter inches): | 3/8 |
| Lo (Free length inches): | 3 1/2 |
| R (Rate lbs/0,1 inch): | 8.3 |
| S1 (Stroke inches for 30% Lo): | 0.88 |
| F1 (Load lbs for 30% Lo): | 72.6 |
| S2 (Stroke inches for 40% Lo): | 1.23 |
| F2 (Load inches for 40% Lo): | 101.7 |
| S3 (Stroke inches for 25% Lo): | 1.40 |
| F3 (Load inches for 25% Lo): | 116.2 |
| Smax (Max Stroke inches): | 1.75 |
Comparable Springs:
Special Springs: RMBL19-089
Danly: M14L
Raymond: 103-414
Moeller: OLS075-250
