Brand: Mollificio Bordignon

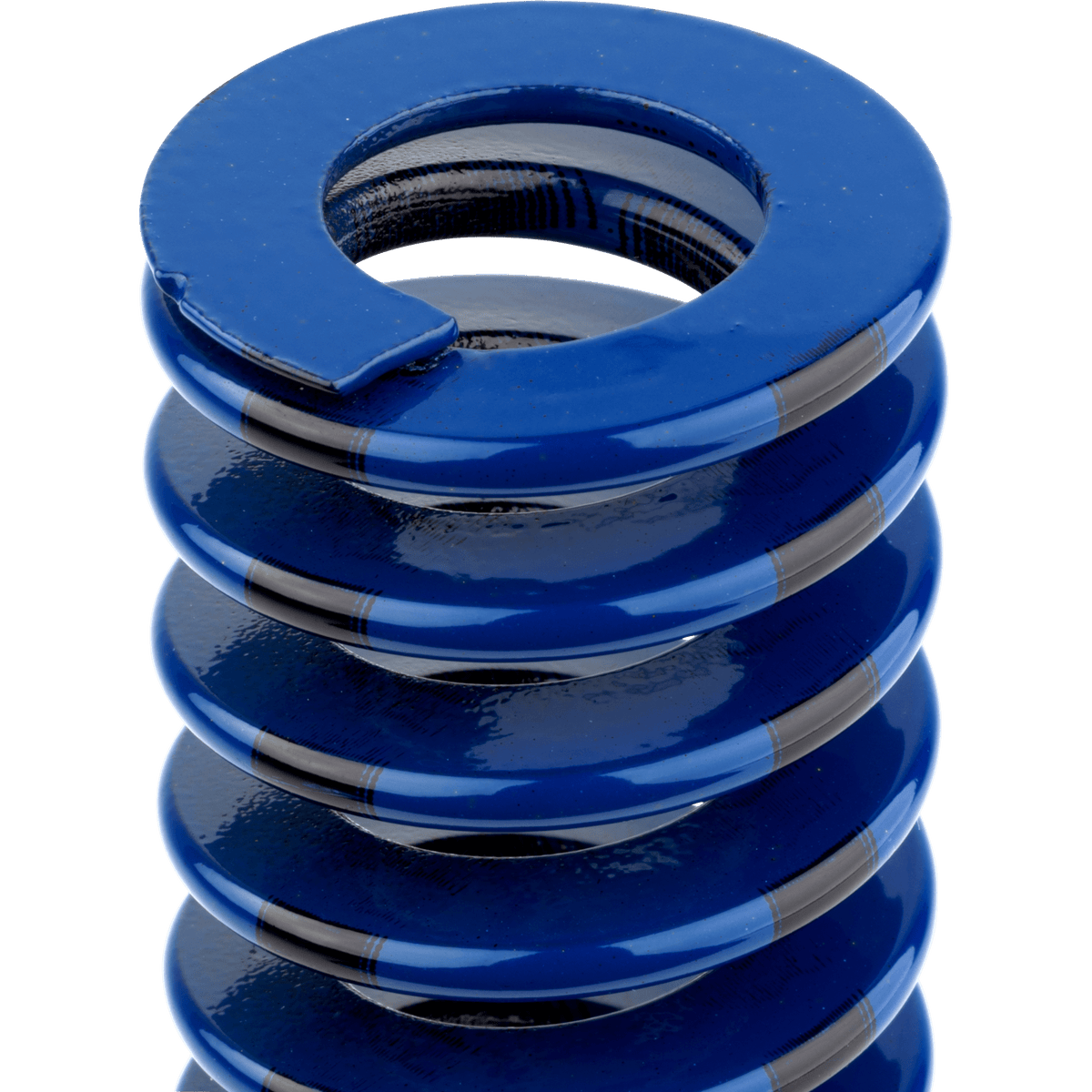

Mollificio Bordignon USB16025 USB Medium Load Die Springs
SKU: BD-USB16025
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB16025 USB Medium Load Die Springs
From Mollificio Bordignon's renowned ISO 10243 series, the USB16025 die spring stands out for accuracy, stability, and trusted performance. Its specifications - housing diameter inches 5/8; housing diameter inches 11/32; free length inches 1; rate lbs/0; 1 inch 16.4 - support efficiency and repeatable performance in tooling environments. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 5/8 |
| d (Rod diameter inches): | 11/32 |
| Lo (Free length inches): | 1 |
| R (Rate lbs/0,1 inch): | 16.4 |
| S1 (Stroke inches for 30% Lo): | 0.25 |
| F1 (Load lbs for 30% Lo): | 41.0 |
| S2 (Stroke inches for 40% Lo): | 0.35 |
| F2 (Load inches for 40% Lo): | 57.4 |
| S3 (Stroke inches for 25% Lo): | 0.40 |
| F3 (Load inches for 25% Lo): | 65.6 |
| Smax (Max Stroke inches): | 0.50 |
Comparable Springs:
Special Springs: RMBL16-025
Danly: M11L
Raymond: 103-304
