Brand: Mollificio Bordignon

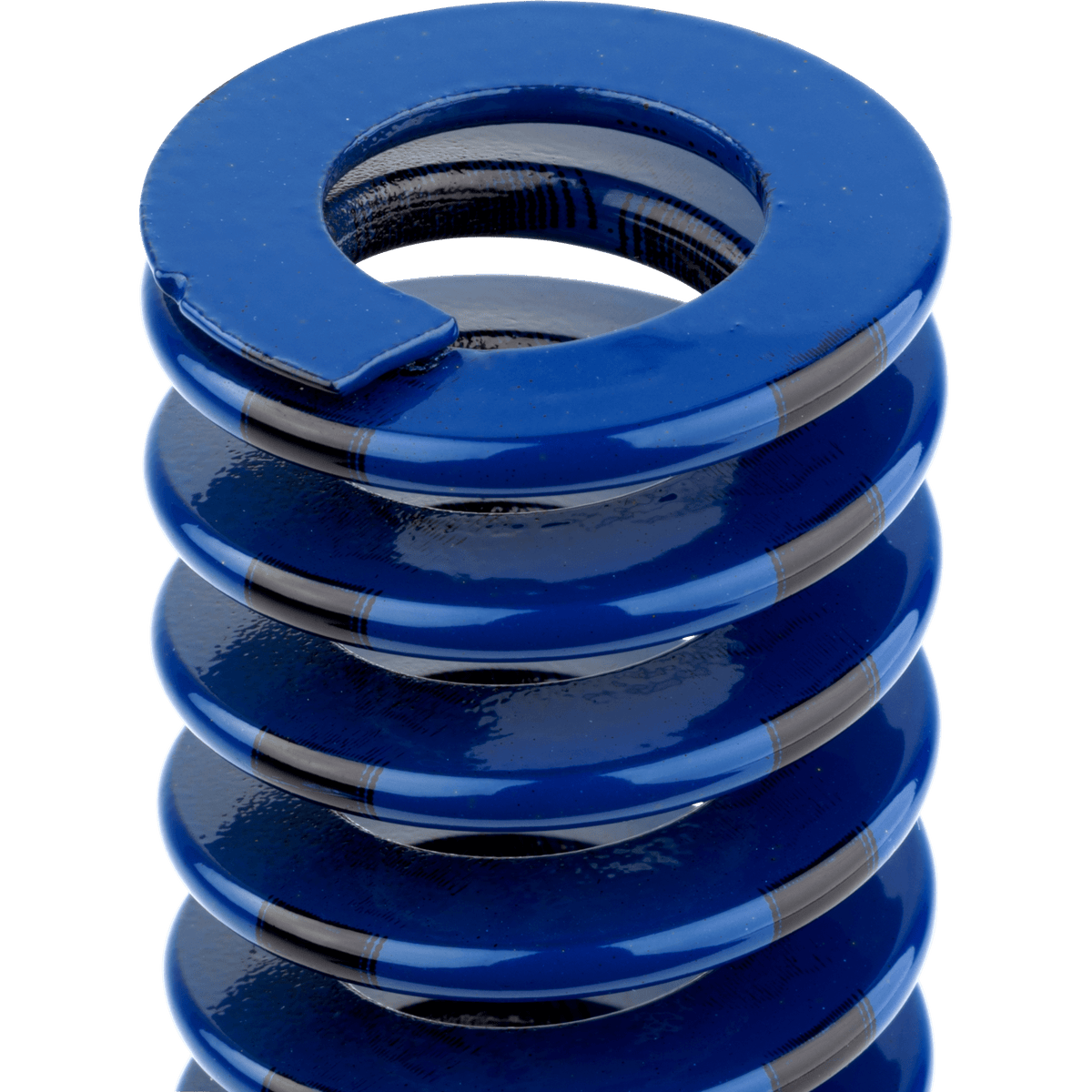

Mollificio Bordignon USB10076 USB Medium Load Die Springs
SKU: BD-USB10076
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon USB10076 USB Medium Load Die Springs
From Mollificio Bordignon's renowned ISO 10243 series, the USB10076 die spring stands out for accuracy, stability, and trusted performance. Its specifications - housing diameter inches 3/8; housing diameter inches 3/16; free length inches 3; rate lbs/0; 1 inch 2.1 - support efficiency and repeatable performance in tooling environments. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 3/8 |
| d (Rod diameter inches): | 3/16 |
| Lo (Free length inches): | 3 |
| R (Rate lbs/0,1 inch): | 2.1 |
| S1 (Stroke inches for 30% Lo): | 0.75 |
| F1 (Load lbs for 30% Lo): | 15.8 |
| S2 (Stroke inches for 40% Lo): | 1.05 |
| F2 (Load inches for 40% Lo): | 22.0 |
| S3 (Stroke inches for 25% Lo): | 1.20 |
| F3 (Load inches for 25% Lo): | 25.2 |
| Smax (Max Stroke inches): | 1.50 |
Comparable Springs:
Special Springs: RMBL10-076
Danly: M103L
Raymond: 103-112
Moeller: OLS037-200
