Brand: Mollificio Bordignon
Mollificio Bordignon BK32150 Black Series Exceptional Loads Die Springs
SKU: BD-BK32150
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*

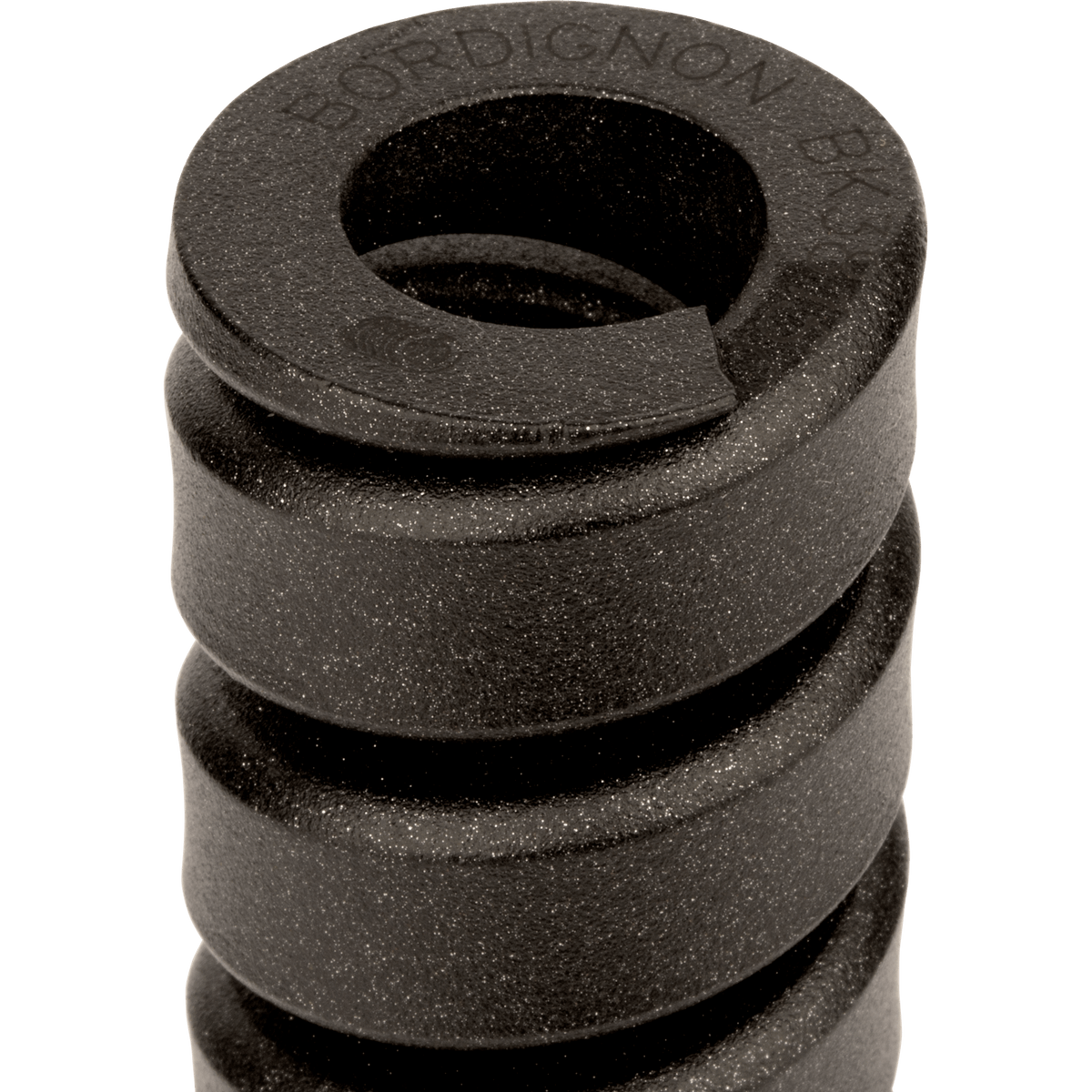

Mollificio Bordignon BK32150 Black Series Exceptional Loads Die Springs
From Mollificio Bordignon's renowned ISO 10243 series, the BK32150 die spring stands out for accuracy, stability, and trusted performance. Among its main highlights are housing diameter inches 1 1/4; housing diameter inches 5/8; free length inches 5.91; rate lbs/0; 1 inch 463, providing excellent strength-to-size ratio and load endurance. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 1 1/4 |
| d (Rod diameter inches): | 5/8 |
| Lo (Free length inches): | 5.91 |
| R (Rate lbs/0,1 inch): | 463 |
| Smax (Max Stroke inches): | 0.73 |
| Fmax (Max Load inches): | 3,372 |
