Brand: Mollificio Bordignon

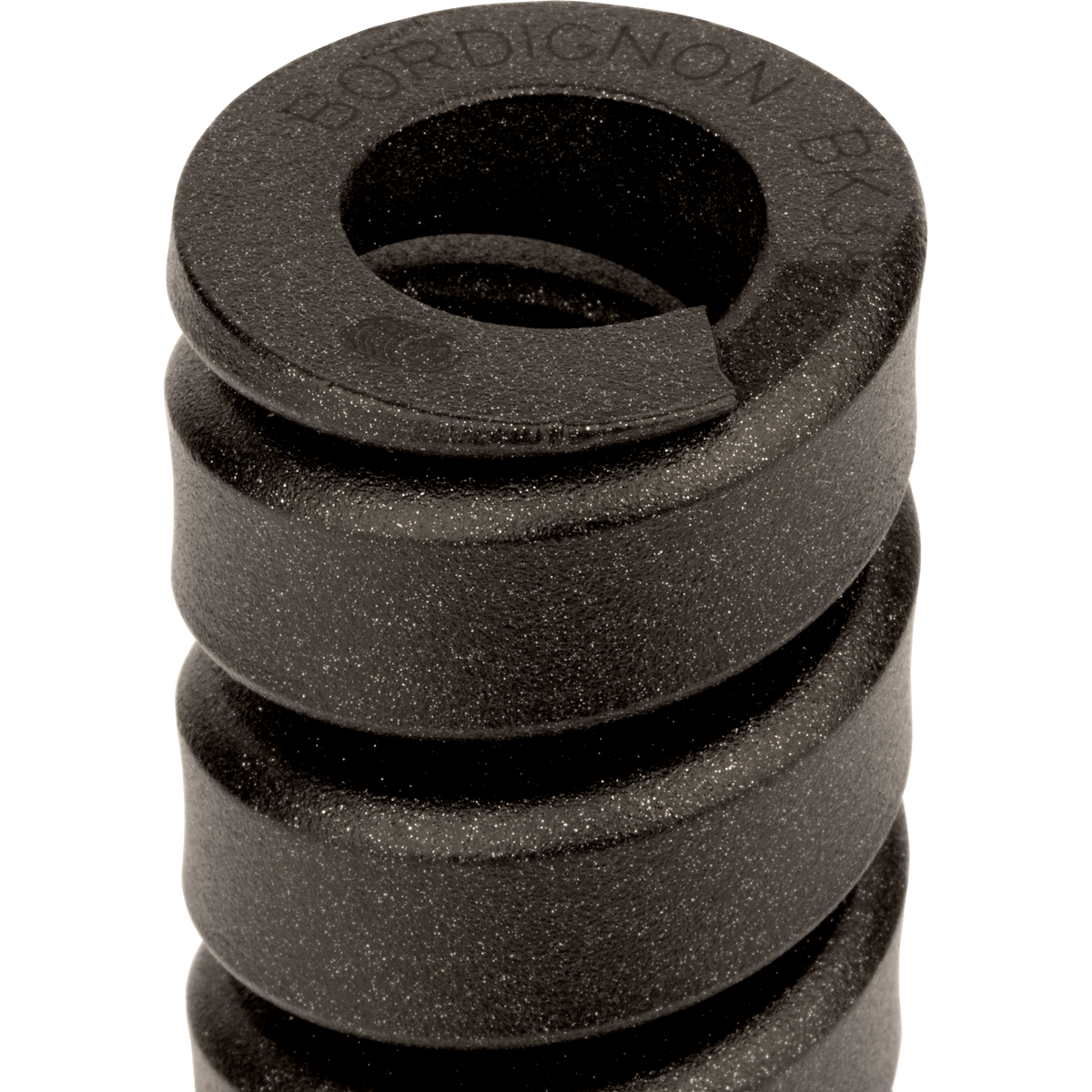

Mollificio Bordignon BK10040 Black Series Exceptional Loads Die Springs
SKU: BD-BK10040
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon BK10040 Black Series Exceptional Loads Die Springs
Built to excel in performance-critical applications, the Mollificio Bordignon BK10040 die spring ensures consistent force and reliability. Among its main highlights are housing diameter inches 3/8; housing diameter inches 3/16; free length inches 1.58; rate lbs/0; 1 inch 148, providing excellent strength-to-size ratio and load endurance. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 3/8 |
| d (Rod diameter inches): | 3/16 |
| Lo (Free length inches): | 1.58 |
| R (Rate lbs/0,1 inch): | 148 |
| Smax (Max Stroke inches): | 0.19 |
| Fmax (Max Load inches): | 281 |
