Brand: Mollificio Bordignon

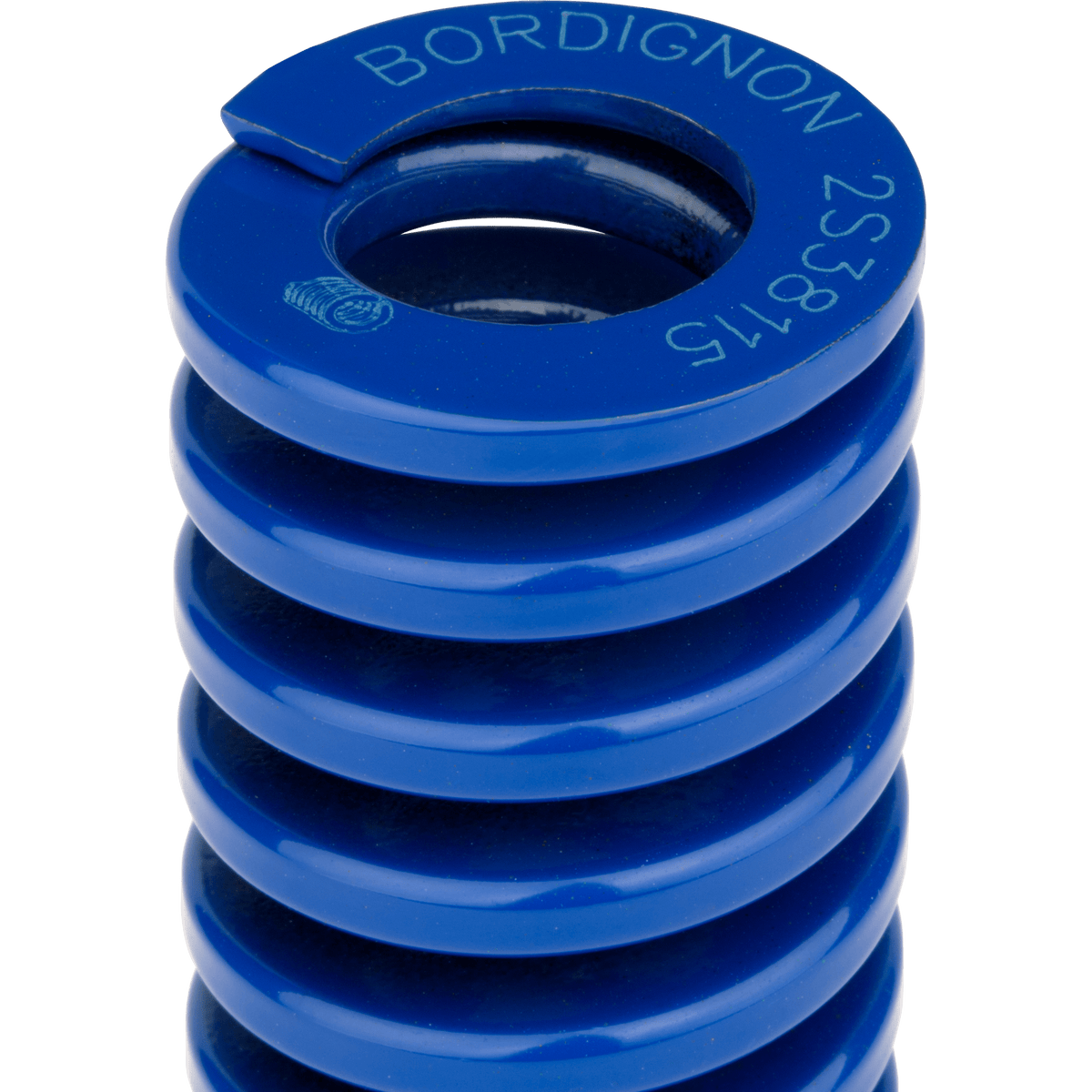

Mollificio Bordignon 2S38176 ISO 10243 Medium Load Die Springs
SKU: BD-2S38176
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon 2S38176 ISO 10243 Medium Load Die Springs
Crafted by Mollificio Bordignon, the 2S38176 die spring delivers precise, reliable performance for demanding tooling operations. With housing diameter inches 1 1/2; housing diameter inches 3/4; free length inches 7; rate lbs/0; 1 inch 25.2, it delivers optimal flexibility, stability, and precision in die applications. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 1 1/2 |
| d (Rod diameter inches): | 3/4 |
| Lo (Free length inches): | 7 |
| R (Rate lbs/0,1 inch): | 25.2 |
| S1 (Stroke inches for 30% Lo): | 1.75 |
| F1 (Load lbs for 30% Lo): | 441 |
| S2 (Stroke inches for 40% Lo): | 2.63 |
| F2 (Load inches for 40% Lo): | 662 |
| b (Wire section inches): | 0.32 |
| h (Wire section inches): | 0.19 |
Comparable Springs:
Special Springs: B40-178
Danly: 9-2428-21
Raymond: 304728D
Moeller: RML150-700
