Brand: Mollificio Bordignon

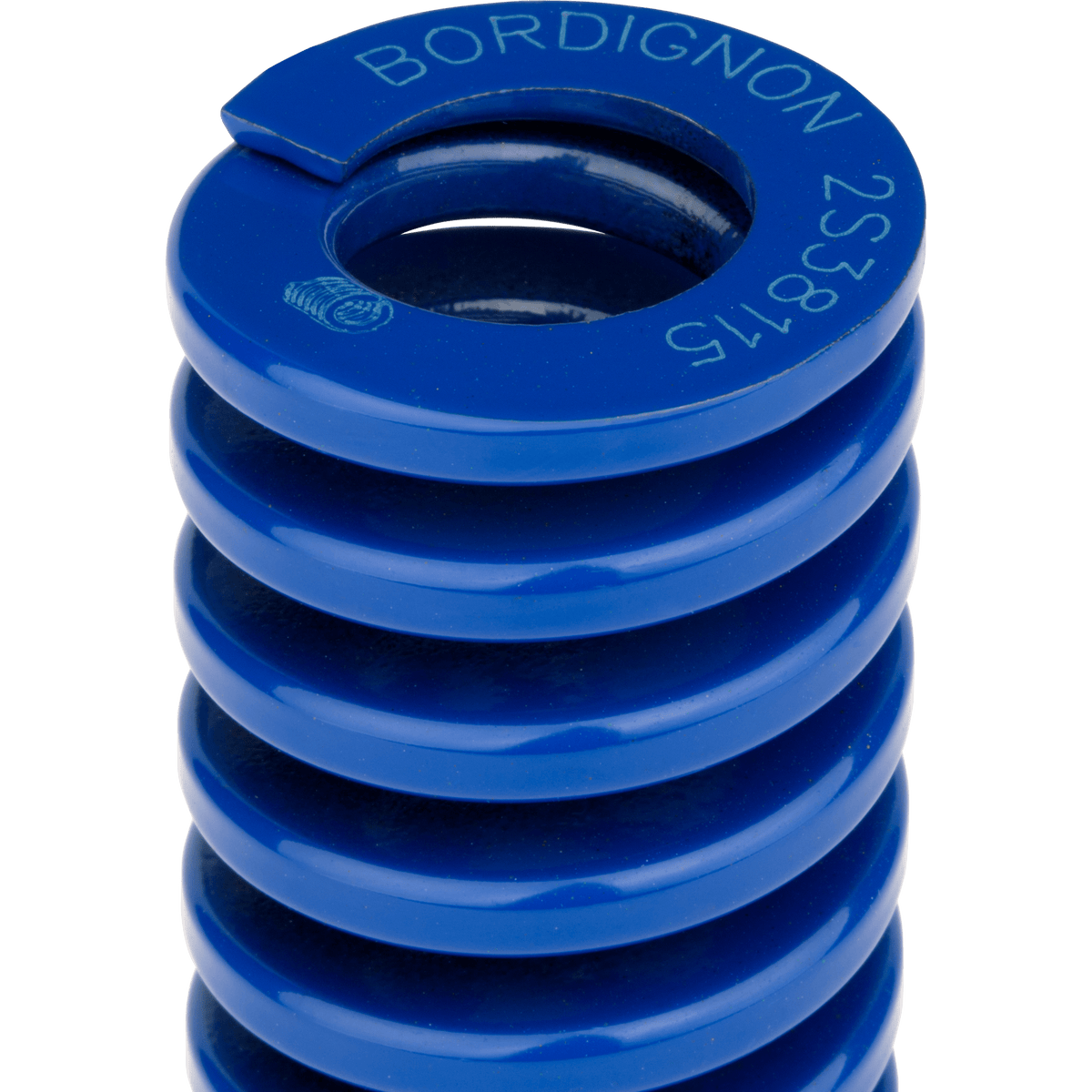

Mollificio Bordignon 2S19038 ISO 10243 Medium Load Die Springs
SKU: BD-2S19038
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, all Mollificio Bordignon orders will have a $25 handling fee added in the shopping cart.*
Mollificio Bordignon 2S19038 ISO 10243 Medium Load Die Springs
Crafted by Mollificio Bordignon, the 2S19038 die spring delivers precise, reliable performance for demanding tooling operations. Its specifications - housing diameter inches 3/4; housing diameter inches 3/8; free length inches 1 1/2; rate lbs/0; 1 inch 32 - support efficiency and repeatable performance in tooling environments. Manufactured to ISO 10243 standards, this spring is ideal for die sets, stamping tools, and heavy-duty mechanical systems.
| D (Housing diameter inches): | 3/4 |
| d (Rod diameter inches): | 3/8 |
| Lo (Free length inches): | 1 1/2 |
| R (Rate lbs/0,1 inch): | 32 |
| S1 (Stroke inches for 30% Lo): | 0.37 |
| F1 (Load lbs for 30% Lo): | 120 |
| S2 (Stroke inches for 40% Lo): | 0.56 |
| F2 (Load inches for 40% Lo): | 179 |
| b (Wire section inches): | 0.16 |
| h (Wire section inches): | 0.09 |
Comparable Springs:
Special Springs: B20-038
Danly: 9-1206-21
Raymond: 304406D
Moeller: RML75-150
