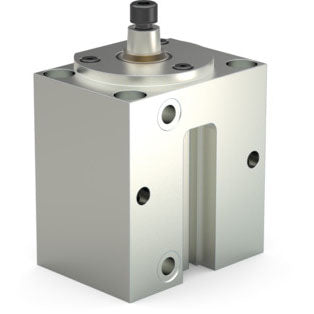

DESTACO 89B50-025-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-50MM BORE RH SWING

Brand: DESTACO

DESTACO 89B50-025-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-50MM BORE RH SWING

SKU: DE-STA-CO-89B50-025-2R
MPN: 89B50-025-2R

  • $681.27
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO 89B50-025-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-50MM BORE RH SWING FOR WELDING, MACHINING & ASSEMBLY - 89B SERIES
*In-stock Destaco products will be shipped within 3 business days. Average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 89B50-025-2R BLOCK STYLE PNEUMATIC SWING CYLINDER-50MM BORE RH SWING

DESTACO 89B50-025-2R PRODUCT DETAILS

Product Details

These proven, reliable designs are useful in a wide variety of applications including welding and assembly. Magnetic ring piston for position sensing. The clamping arm can be positioned 360 degrees radially. Accommodates T-slot (8EA-109-1) sensors.

  • Lightweight and robust, designed for several million cycles
  • Clamping arms sold separately
  • Maximum operating pressure 8 bar (120 psi)
  • Replaces 89B50-010-1R
Stroke (in) 1.570
Cylinder Bore (in) 1.97
Clamping Force @ 5Bar[72Psi] (lbf.) 161
Mount Block style - side or top mount
Replacement Seal Kit 89B/E50-2-00
Swing Direction RH
Air Port size G-1/8
Air Consumption (per double stroke at 7 psi) (in³) 0.036
Stroke during rotation (in) 0.59
Vertical clamp stroke (in) 0.98
Sensor Ready Yes
Weight (lb) 5.95
Product Series Description Swing Clamp
Product Function Clamping
Product Family Light-Duty Pneumatic Clamping
Product Group pneumatic swing clamps
