Short Description

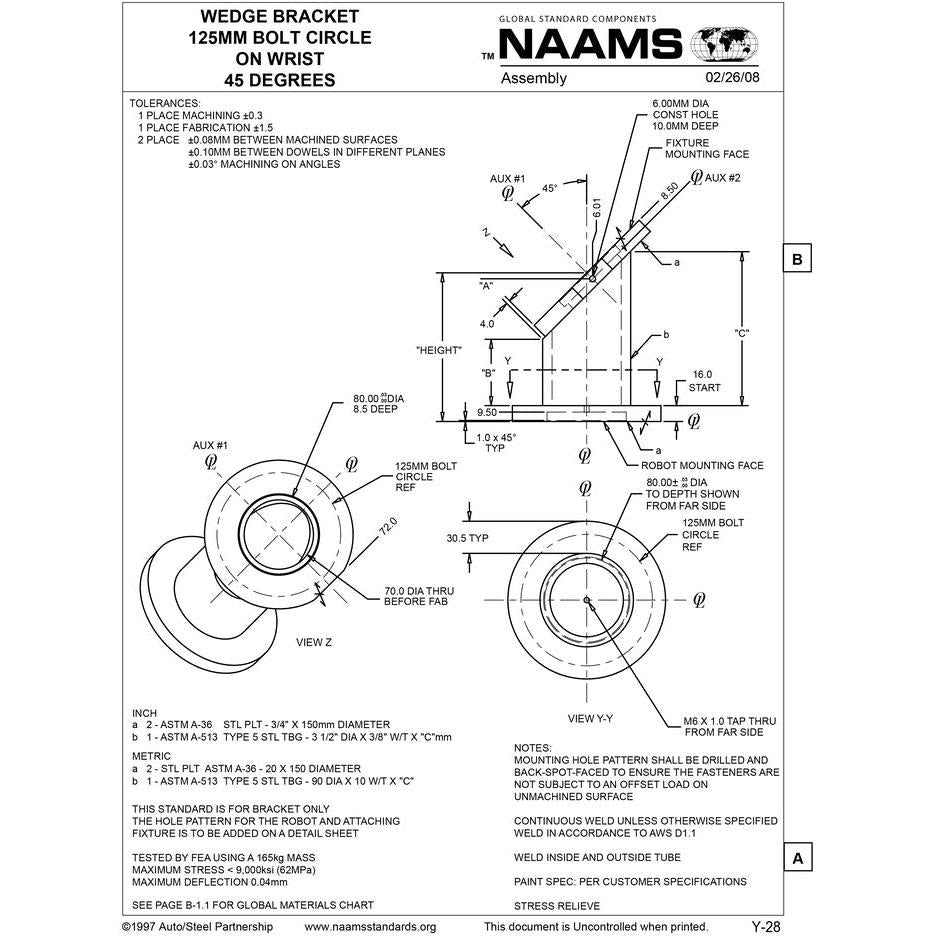

Freer NAAMS AWB903 wedge bracket comes with a 125mm bolt circle on a wrist of 45 degrees. It is manufactured from ASTM A-36 and ASTM A-513 with a height of 200mm.Full Description
FREER NAAMS WEDGE BRACKET AWB903
125mm Bolt Circle on Wrist 45 Degrees
Materials: ASTM A-36 and ASTM A-513

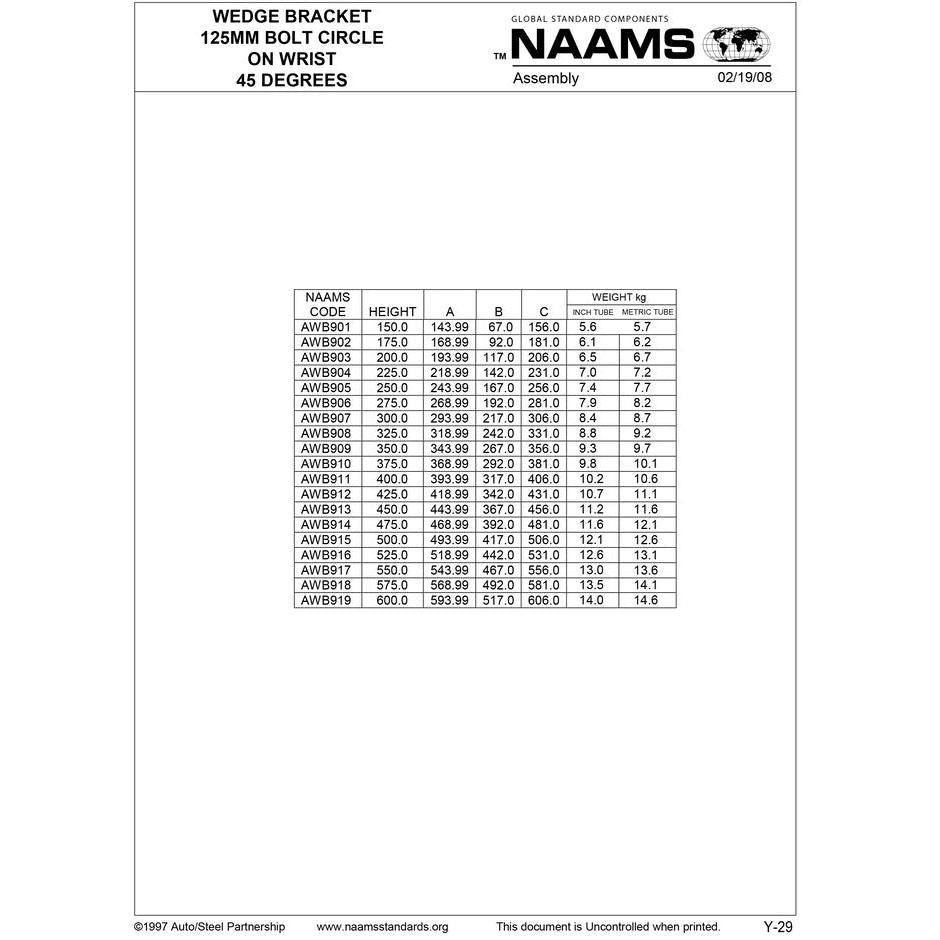

| Height | A | B | C | Inch Tube Wt. kg | Metric Tube Wt. kg |
| 200mm | 193.99mm | 117mm | 206mm | 6.5 | 6.7 |
