Brand: Dorian

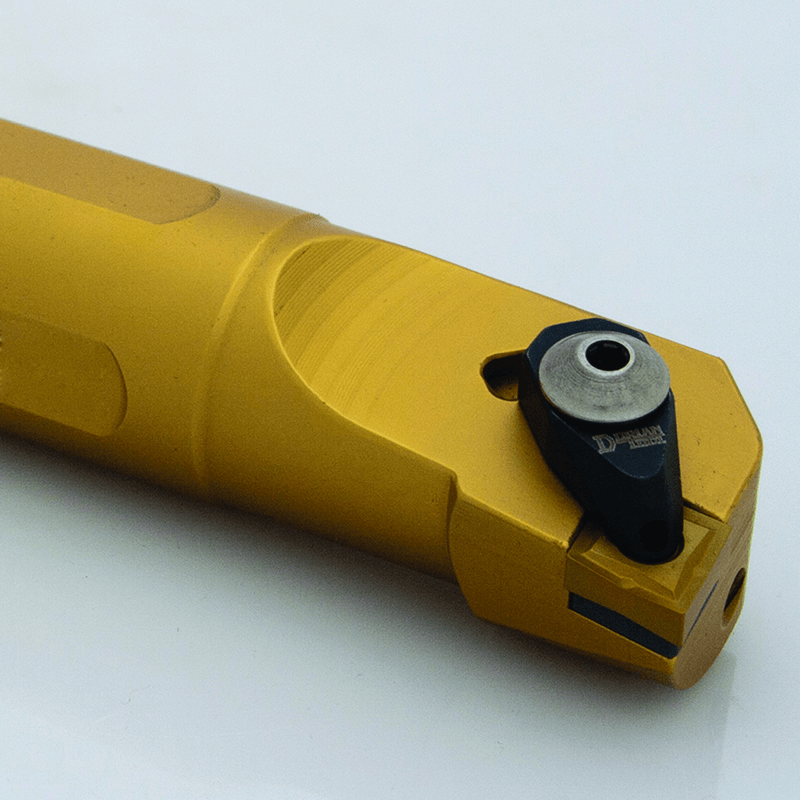

Dorian FL4553125 AS-20S-ADCLNL-4-1.530" Min Bore - Use CNM_432 Insert - Turning Toolholder
SKU: FTS-FL4553125
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 53125 AS-20S-ADCLNL-4-1.530" Min Bore - Use CNM_432 Insert - Turning ToolholderFull Description
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 10" | Coolant Supply Property (CSP) | Internal |
| Overall Length (OAL) | 10" | Tool Type | Turning Toolholders-Coolant Thru |
| Master Insert Identification (MIID) | CNM_432 | Style | DCLNL |
| Minimum Bore Diameter (DMIN) | 1.53" | Rake Angle | 5 Degrees |
• Style L • Negative 5° Side and End Cutting Edge Angle for Negative 80° Diamond CNM_ Inserts
