NAAMS Respot Pin ARE161MT
NAAMS Respot Pin ARE161MT
NAAMS Respot Pin ARE161MT

Brand: FREER NAAMS

NAAMS Respot Pin ARE161MT

SKU: FN-ARE161MT
MPN: ARE161MT

  • Save $3.99
Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*

Short Description

Freer NAAMS respot pin ARE161MT.

All of our NAAMS Standard locating pins with TiN coating are only made from A2 steel and hardened to 58-62 hRC.

Titanium nitride is added to the pin.

*M2 coated pins available, per quote only*


Full Description

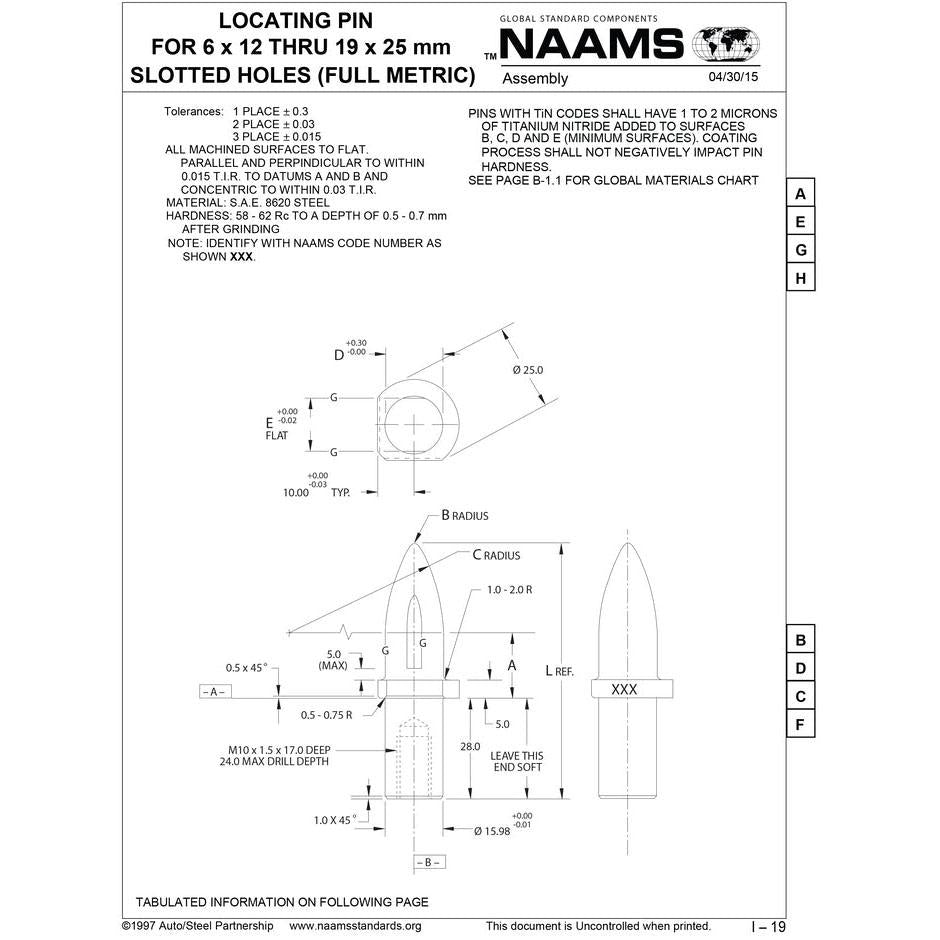

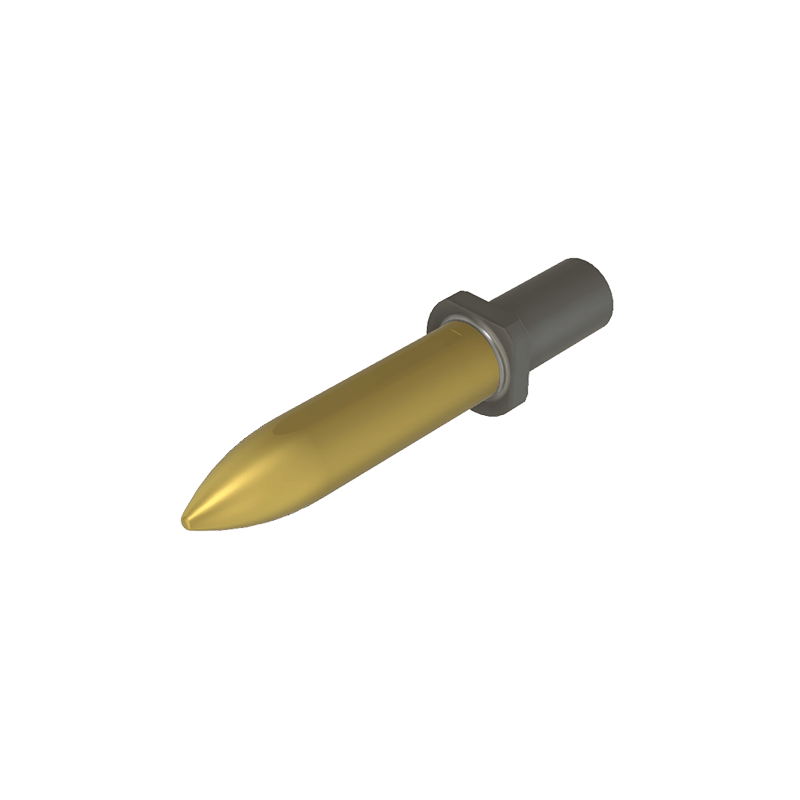

NAAMS Respot Pin ARE161MT

FREER NAAMS Respot Pin ARE161MT

Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*

T = Titanium nitride added

A: 15mm

L: 68mm

Wt. kg: 0.09
