Brand: FREER NAAMS
NAAMS Locating Pin APS257RT
SKU: FN-APS257RT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description

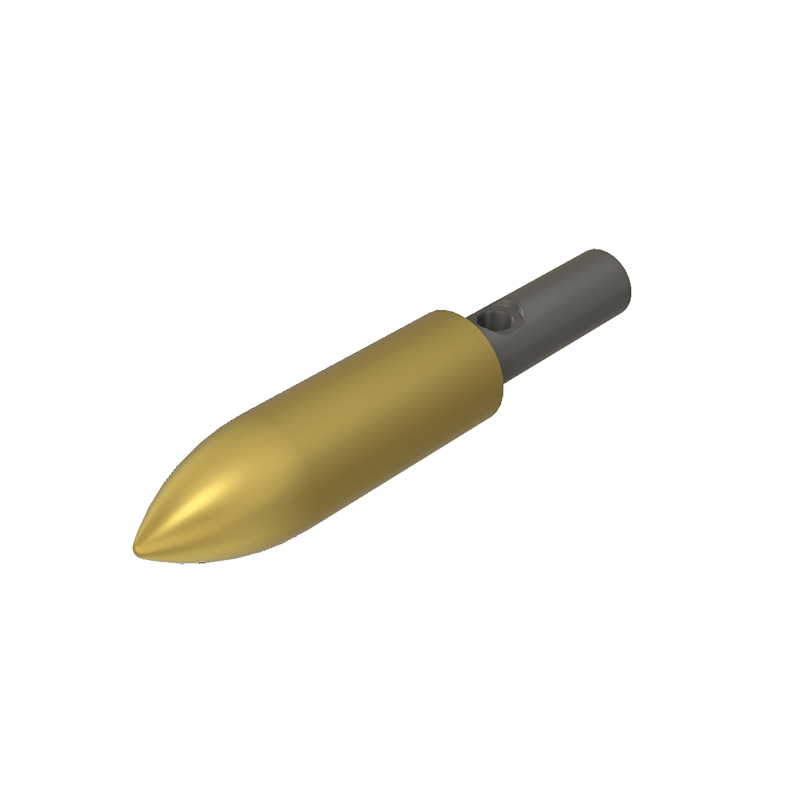

The NAAMS Locating Pin APS257RT is engineered for precision and longevity in industrial tooling. At 149.8mm in length and weighing a manageable 0.39kg, this component integrates seamlessly into your production setup. Constructed from A2 steel and hardened to 58-62HRC, it resists wear and maintains dimensional accuracy under demanding conditions. Strategic titanium nitride coating on key surfaces boosts performance and extends service life. Need enhanced specifications? M2 coated options are available through custom quote. Choose a locating pin built to outperform and outlast.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

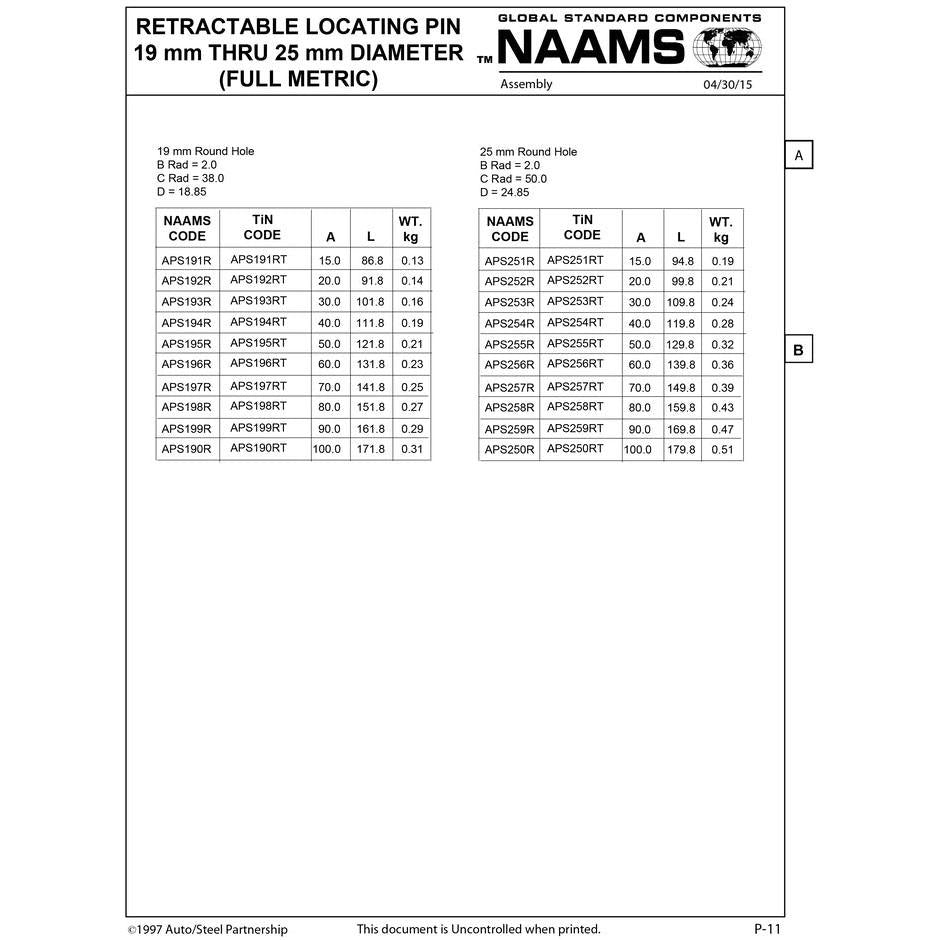

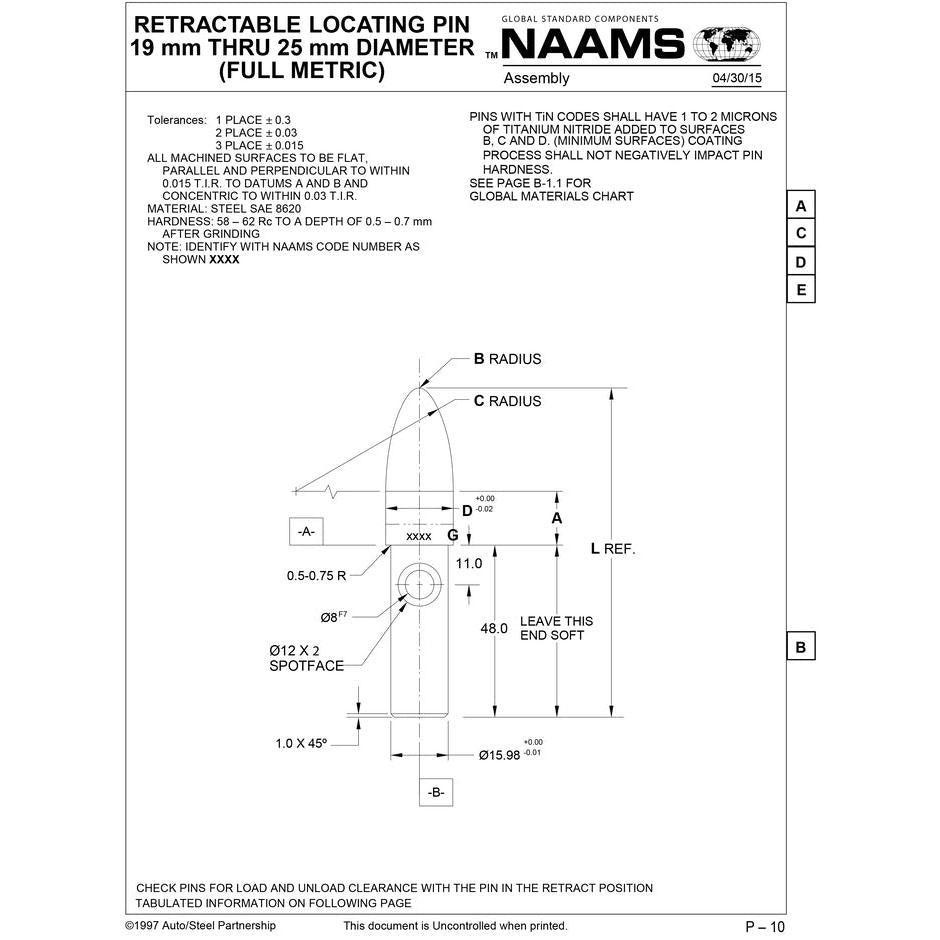

FREER NAAMS LOCATING PIN APS257RT
A: 70mm
L: 149.8mm
WT. kg: 0.39
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
