Brand: FREER NAAMS
NAAMS Locating Pin APS192M
SKU: FN-APS192M
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description

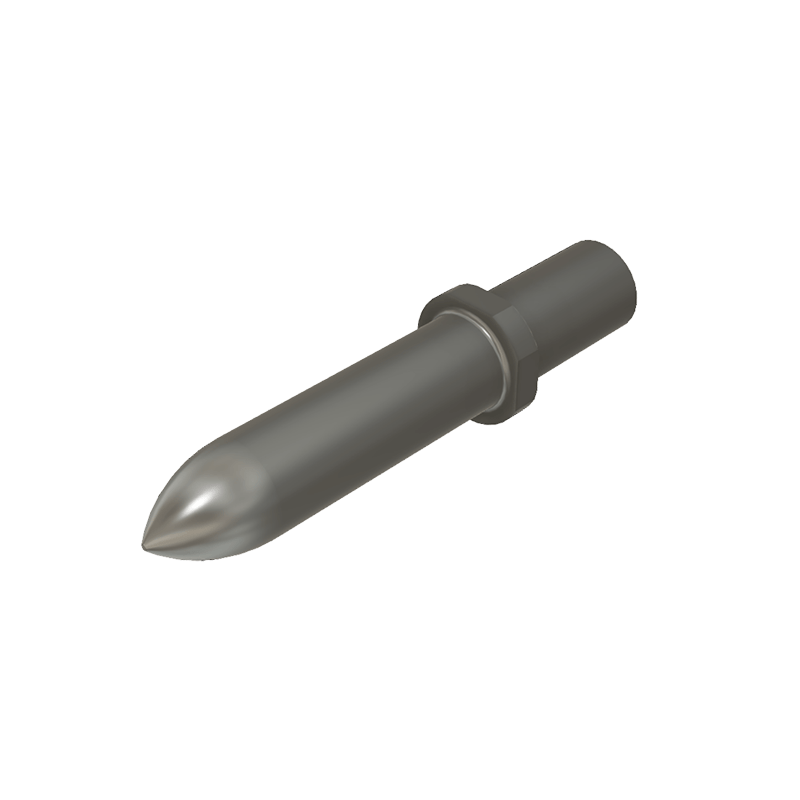

NAAMS Locating Pin APS192M delivers precision engineering for demanding industrial applications. This hardened steel component features a 71.8mm length, engineered to exacting standards from ANSI 4140 material and heat-treated to 58-62 HRC for superior durability and wear resistance. At just 0.12 kg, it's lightweight yet robust enough to handle repetitive positioning tasks with consistent accuracy. Trust this professional-grade locating pin to keep your tooling systems aligned and performing at peak efficiency.
Full Description

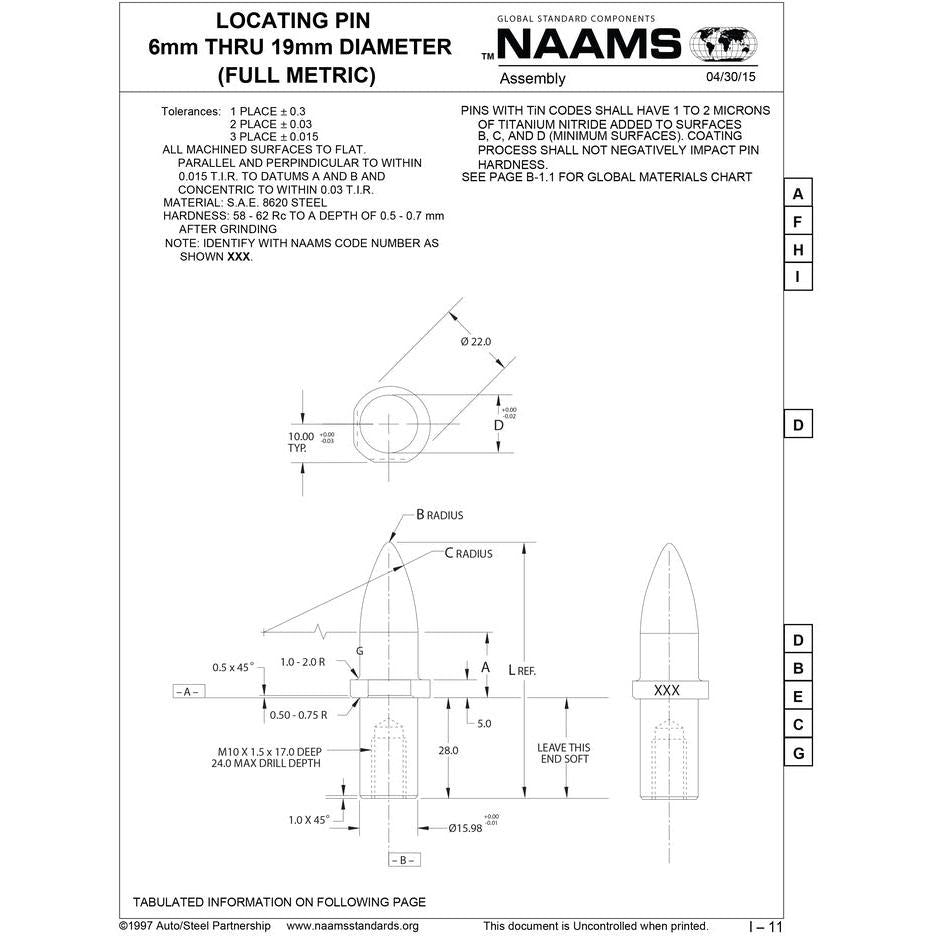

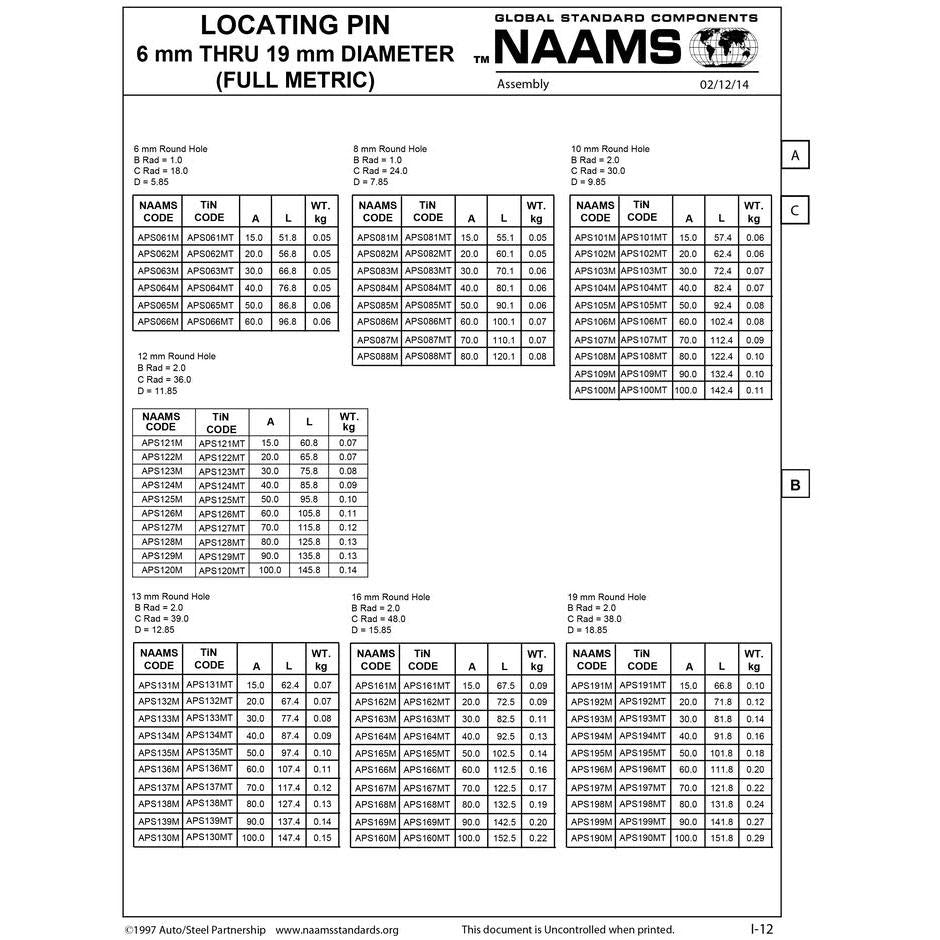

FREER NAAMS LOCATING PIN APS192M
A: 20mm
L: 71.8mm
WT. kg: 0.12
Material: ANSI 4140 Steel and hardened to 58-62 hRC.
