Brand: FREER NAAMS

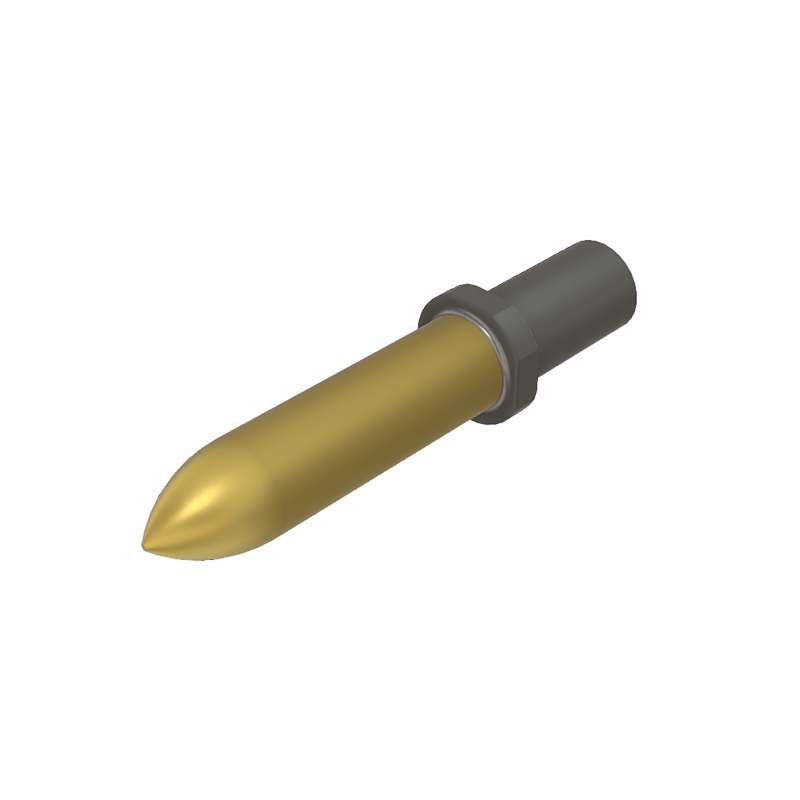

NAAMS Locating Pin APS165MT
SKU: FN-APS165MT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
NAAMS locating pins engineered for precision alignment in your tooling systems. This APS165MT model delivers reliable performance with a 102.5mm length, crafted from hardened A2 steel (58-62 HRC) for exceptional durability under demanding conditions. At just 0.14 kg, it's lightweight without compromising strength. Titanium nitride coating on critical surfaces enhances wear resistance and extends service life. Custom M2 coated options available to meet your specific application requirements. Trust the accuracy and longevity that professional-grade locating pins provide.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

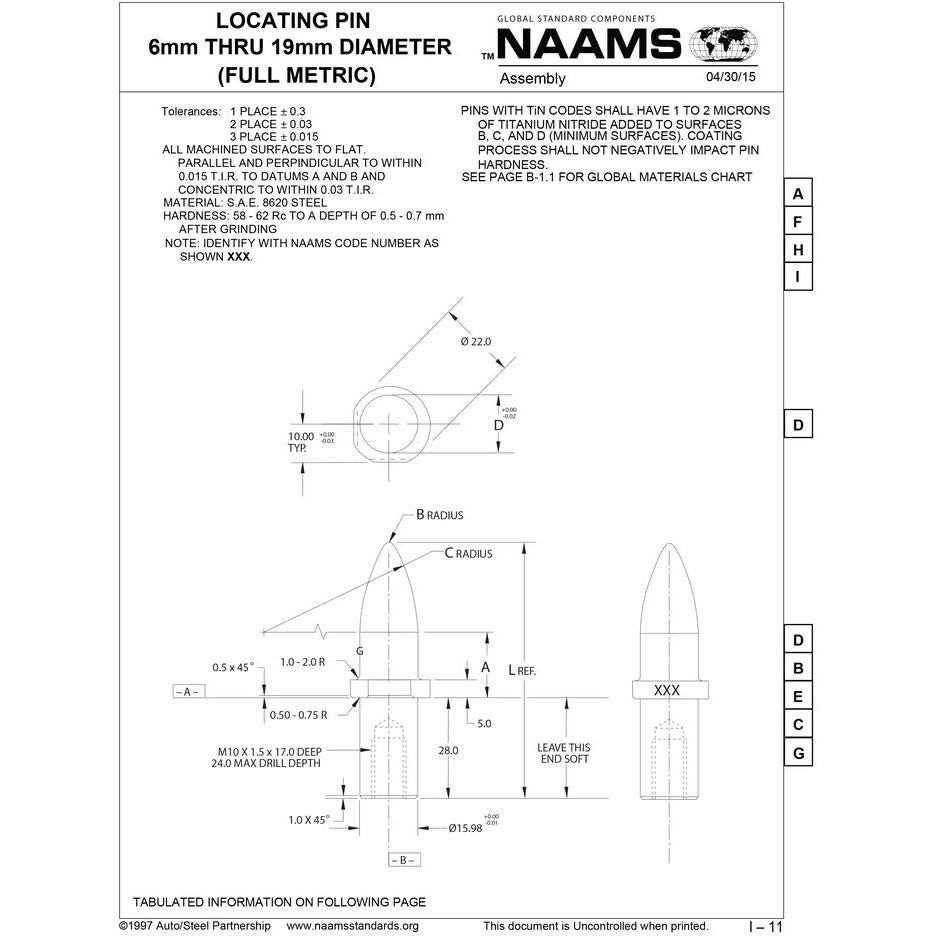

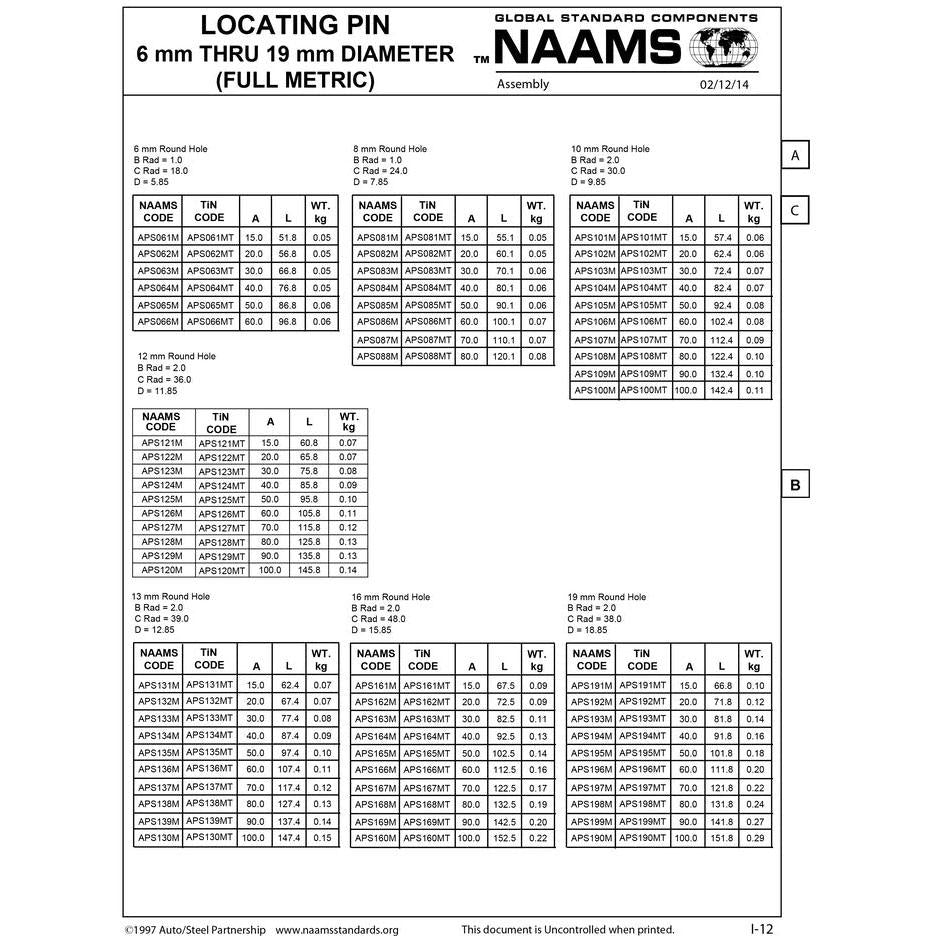

FREER NAAMS LOCATING PIN APS165MT
A: 50mm
L: 102.5mm
WT. kg: 0.14
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
