Brand: FREER NAAMS

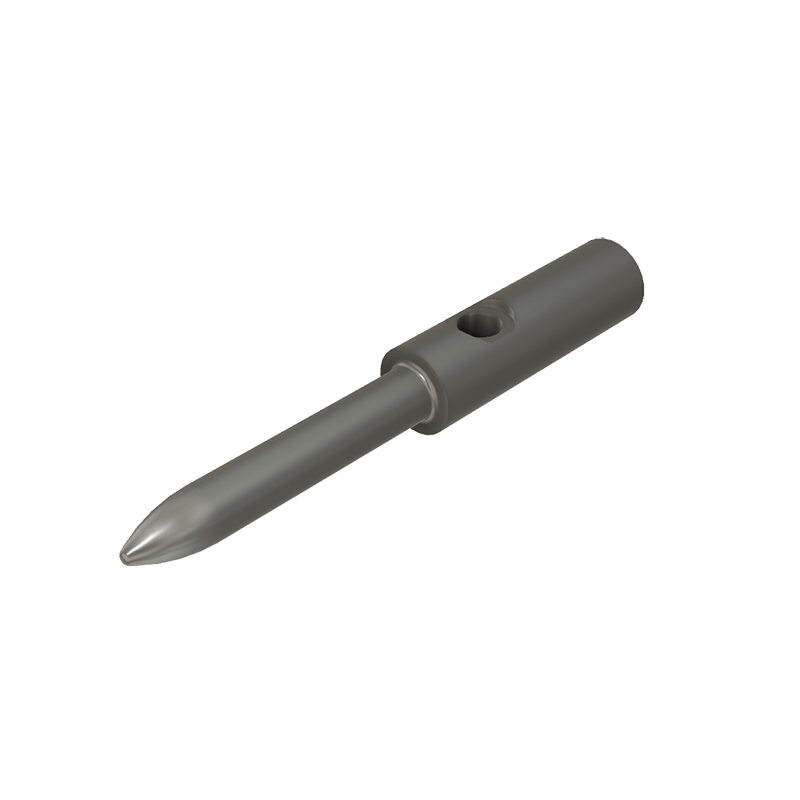

NAAMS Locating Pin APS083R
SKU: FN-APS083R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the power of NAAMS Standards with our APS083R locating pin. Crafted from high-quality ANSI 4140 Steel, these pins are built to last and are hardened to 58-62 hRC for maximum durability. Elevate your production with the precision and reliability of our Freer full metric locating pin.
Full Description

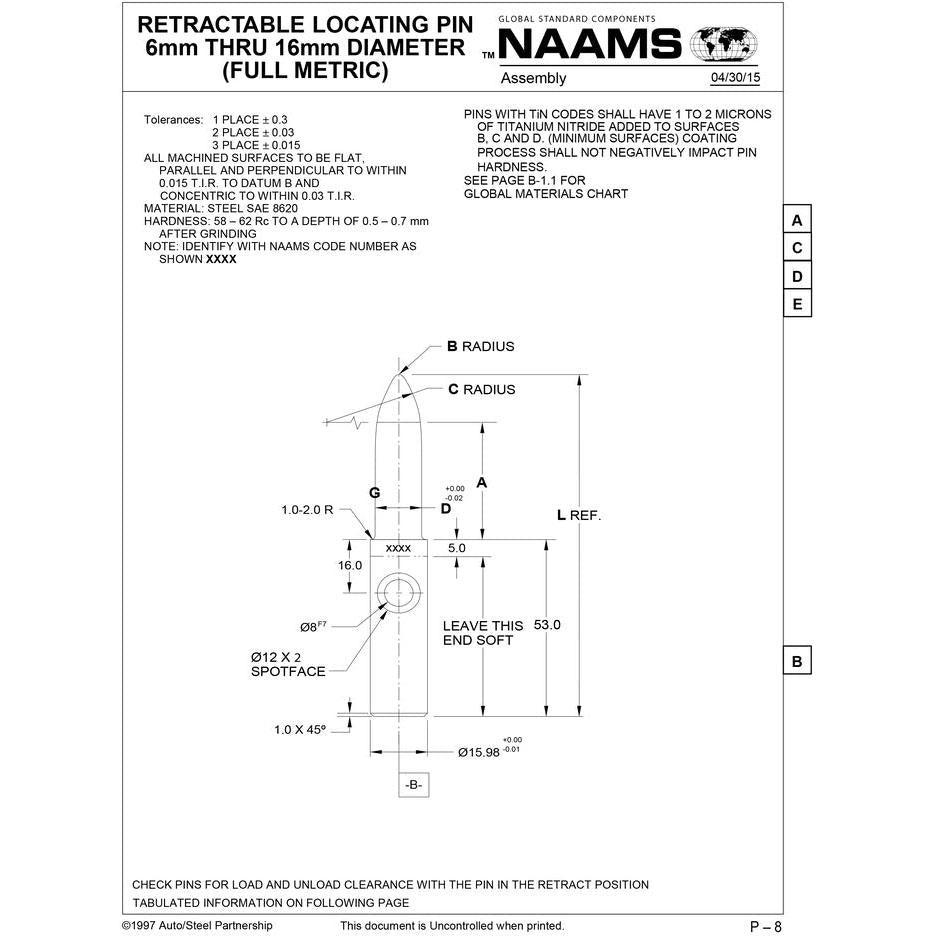

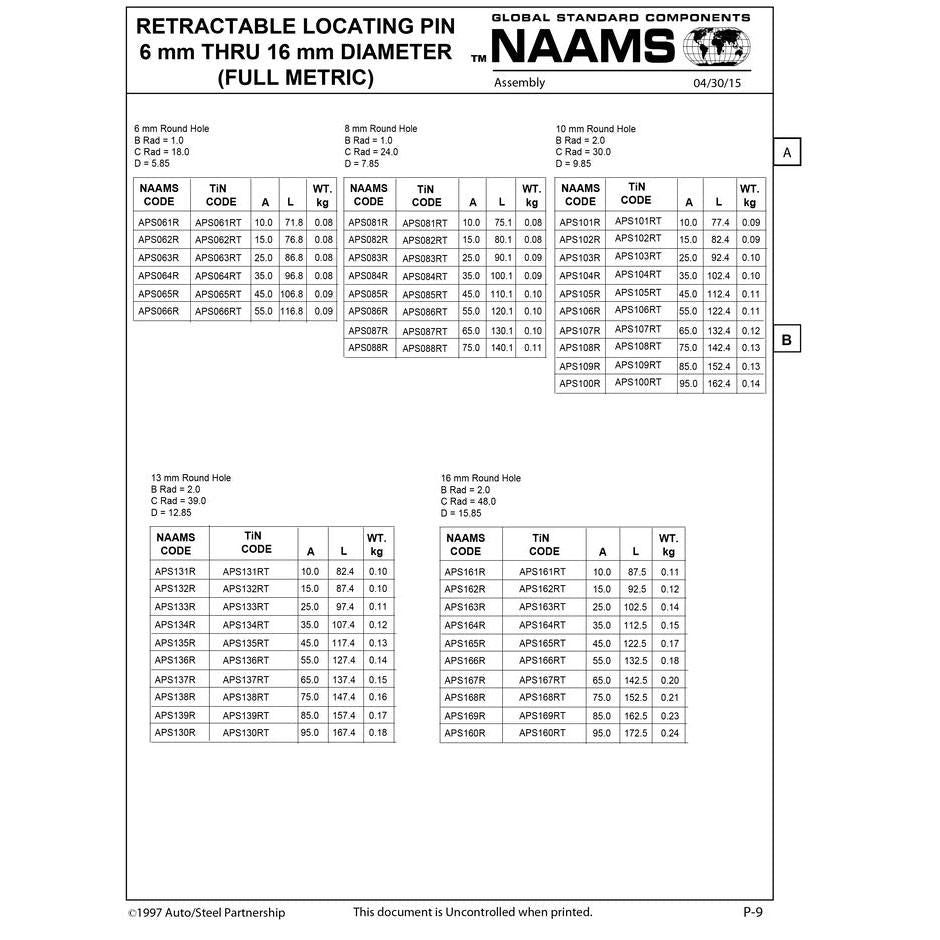

FREER NAAMS LOCATING PIN APS083R
A: 25mm
L: 90.1mm
WT. kg: 0.09
Material: ANSI 4140 Steel and hardened to 58-62 hRC.
