Brand: FREER NAAMS
NAAMS Locating Pin APS063RT
SKU: FN-APS063RT
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Freer NAAMS full metric locating pin APS063RT.All of our NAAMS Standard locating pins with TiN coating are only made from A2 steel and hardened to 58-62 hRC.
T = Titanium nitride added.
*M2 coated pins available, per quote only*
Full Description

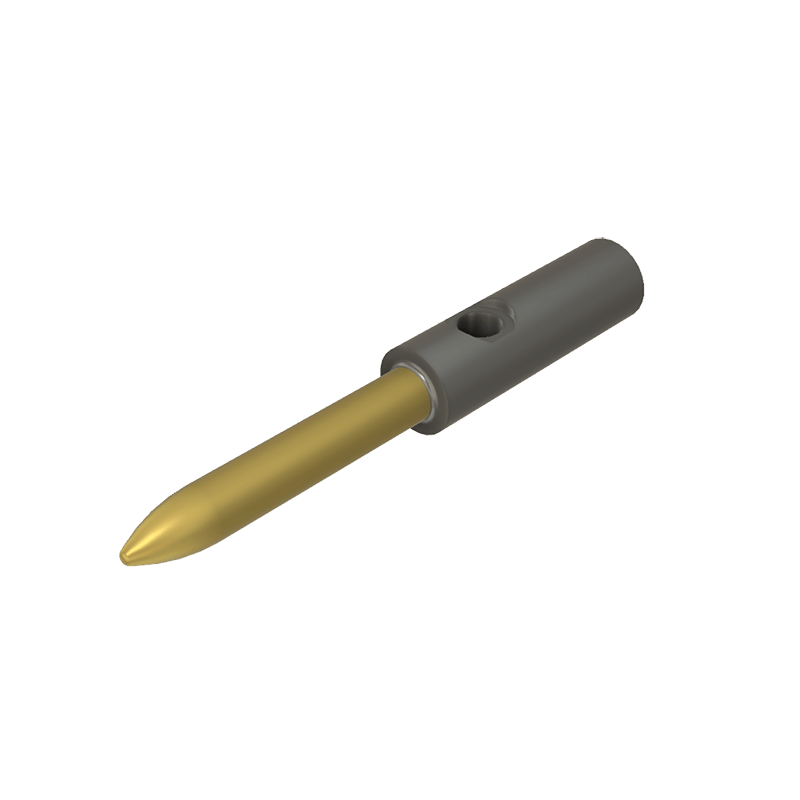

FREER NAAMS LOCATING PIN APS063RT

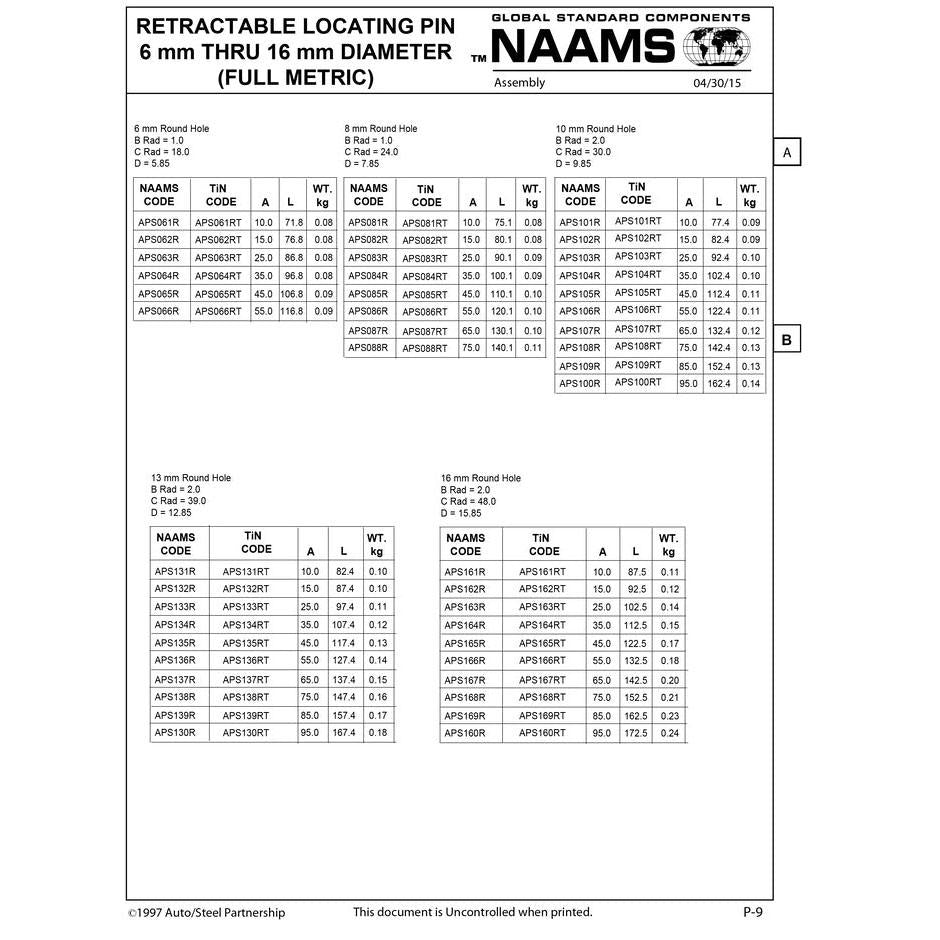

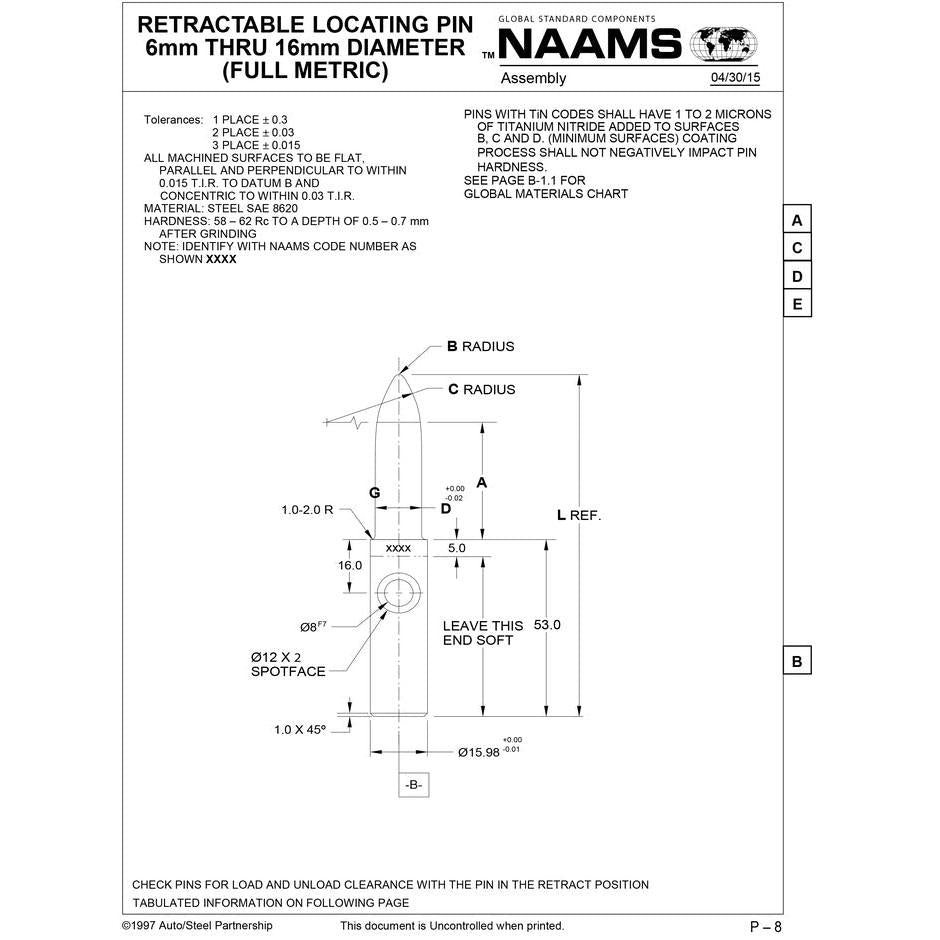

A: 25mm
L: 86.8mm
WT. kg: 0.08
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*.
Titanium nitride added (minimum surfaces).
