Brand: Iscar

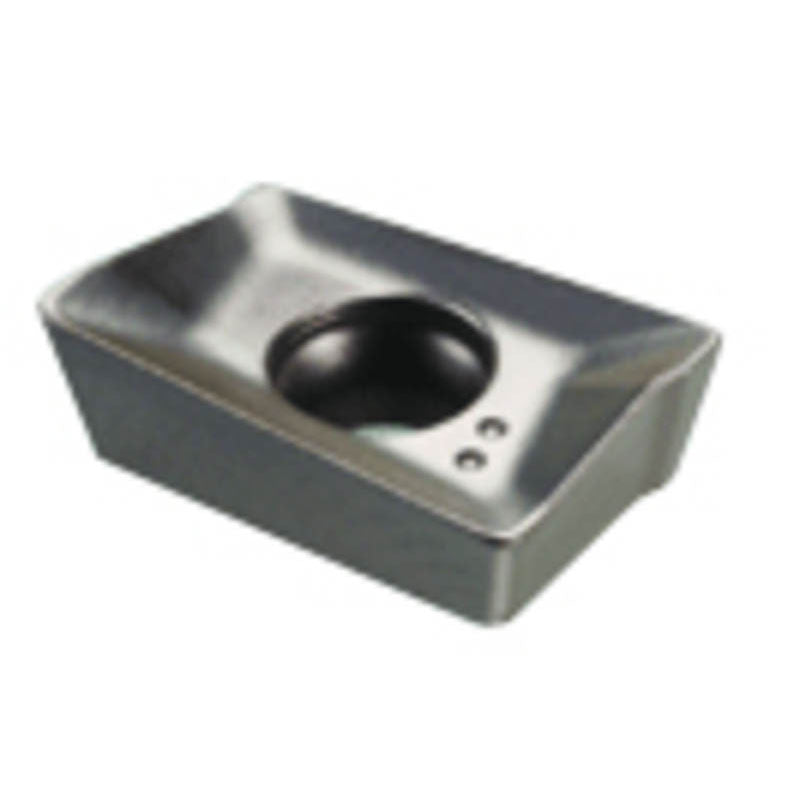

Iscar EH5696925 APKT 1003PDTR-8M IC328
SKU: FTS-EH5696925
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5696925 APKT 1003PDTR-8M IC328Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 85° Parallelogram |
| Application | | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Insert Style | APKT |
| Cutting Edge Length (L) | 0.431" | Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
| Insert Length (INSL) | 0.431" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0197" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.396" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Width (W1) | 0.264" | Cutting Edge Effective Length (LE) | 0.396" |
| Insert Thickness (S) | 0.14" | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 |
Family Description
HELIMILL insert with reinforced helical cutting edges for interrupted cut and heavy milling. Excellent for reducing chatter on long overhang and extended flute cutters.
