Brand: FREER NAAMS
NAAMS Locating Pin APE257ST
SKU: FN-APE257ST
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
Elevate your assembly process with the APE257ST NAAMS locating pin. Our premium NAAMS Standard pins feature a tough TiN coating and are crafted from hardened A2 steel with a 58-62hRC rating. The inclusion of titanium nitride adds even greater durability to the pin.
*M2 coated pins available, per quote only*
Full Description

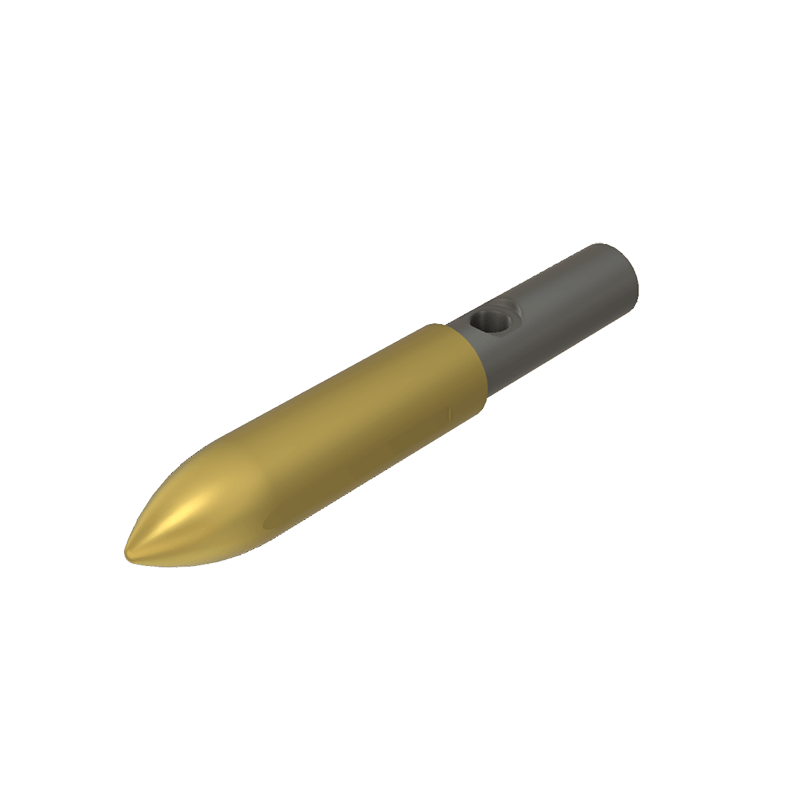

FREER NAAMS Locating Pin APE257ST
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*
Titanium nitride added in
Retractable side hole
A: 70
L: 150.1
WT. kg: 0.4
