Brand: FREER NAAMS
NAAMS Locating Pin APE250ST
SKU: FN-APE250ST
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*All TiN Coated NAAMS Locating Pins Have a 5 Piece Minimum Buy*
Short Description
Energize your assembly process with NAAMS Locating Pin APE250ST. Made from A2 steel and hardened to 58-62hRC, our NAAMS Standard locating pins feature TiN coating. Experience the enhanced durability and precision of titanium nitride.
*M2 coated pins available, per quote only*
Full Description

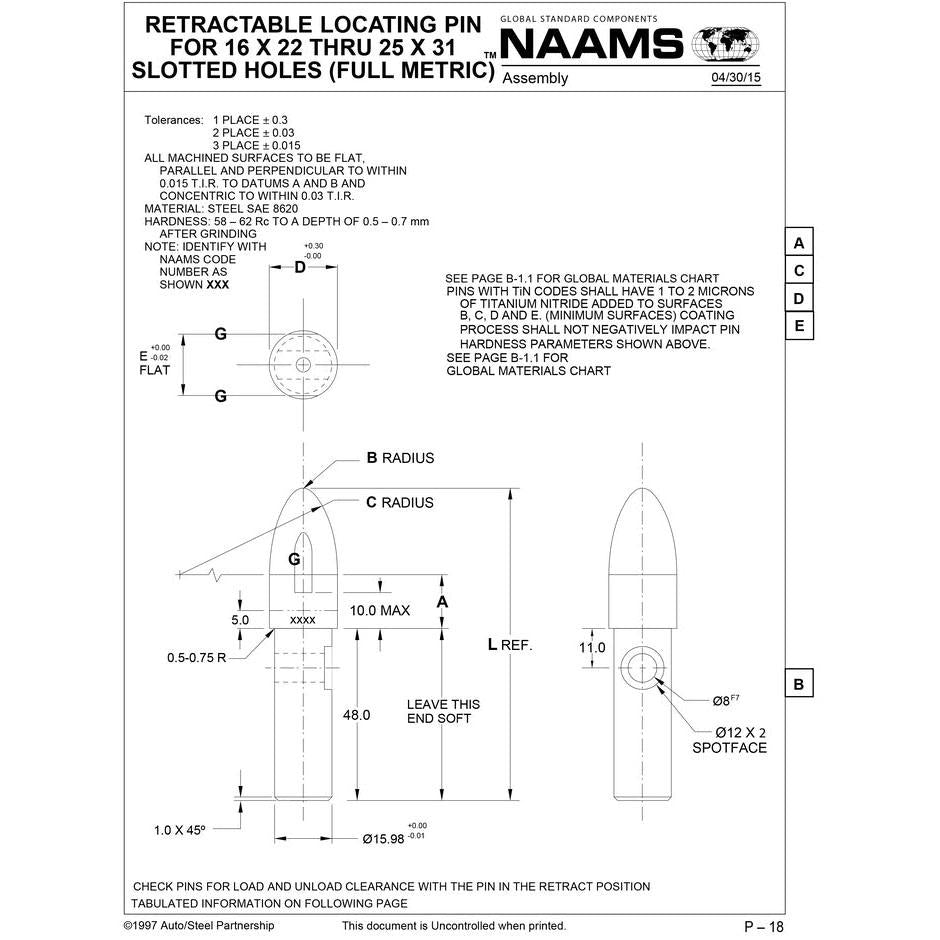

FREER NAAMS Locating Pin APE250ST
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*
Titanium nitride added in
Retractable side hole

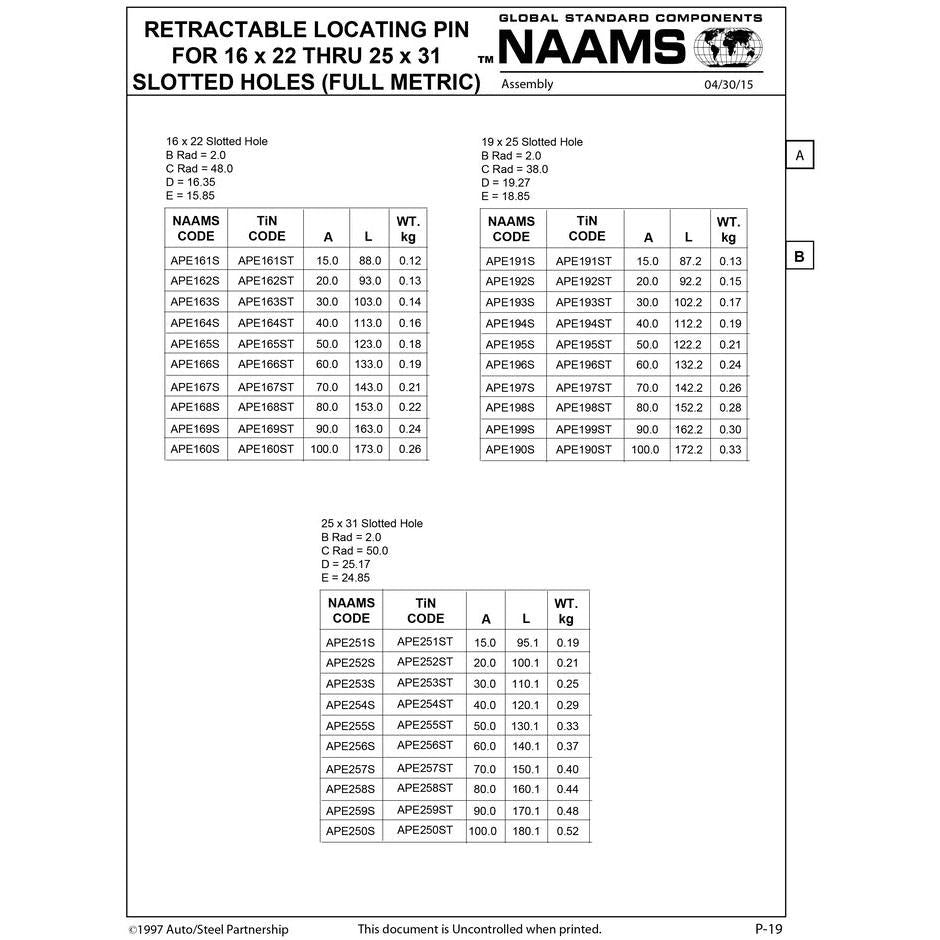

A: 100
L: 180.1
WT. kg: 0.52
