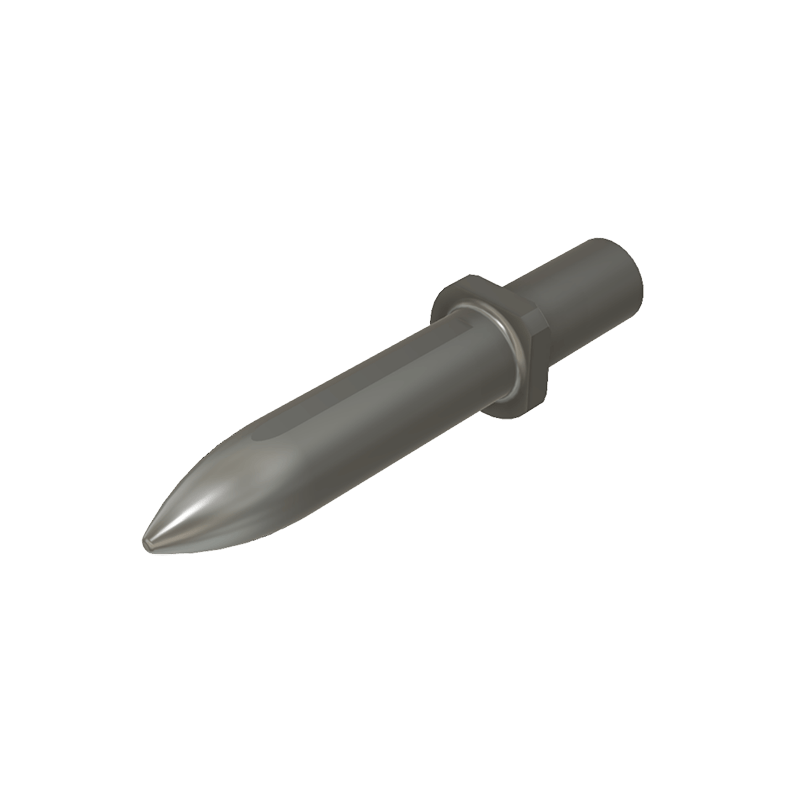

NAAMS Locating Pin APE197M
NAAMS Locating Pin APE197M
NAAMS Locating Pin APE197M

Brand: FREER NAAMS

NAAMS Locating Pin APE197M

SKU: FN-APE197M
MPN: APE197M

  • Save $4.25
Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

The APE197M NAAMS locating pin, part of the Freer line, is crafted from ANSI 4140 Steel and hardened to a strong 58-62hRC. It's a reliable and high-quality choice for any NAAMS standard locating pin needs.

Full Description

NAAMS Locating Pin APE197M

FREER NAAMS Locating Pin APE197M

Material: ANSI 4140 Steel, hardened to 58-62hRC

A: 70

L: 122.2

WT. kg: 0.23
