Brand: FREER NAAMS
NAAMS Locating Pin APE196ST
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 3-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short DescriptionFreer NAAMS locating pin APE196ST.
All of our NAAMS Standard locating pins with TiN coating are only made from A2 steel and hardened to 58-62hRC.
Titanium nitride is added to the pin.
*M2 coated pins available, per quote only*

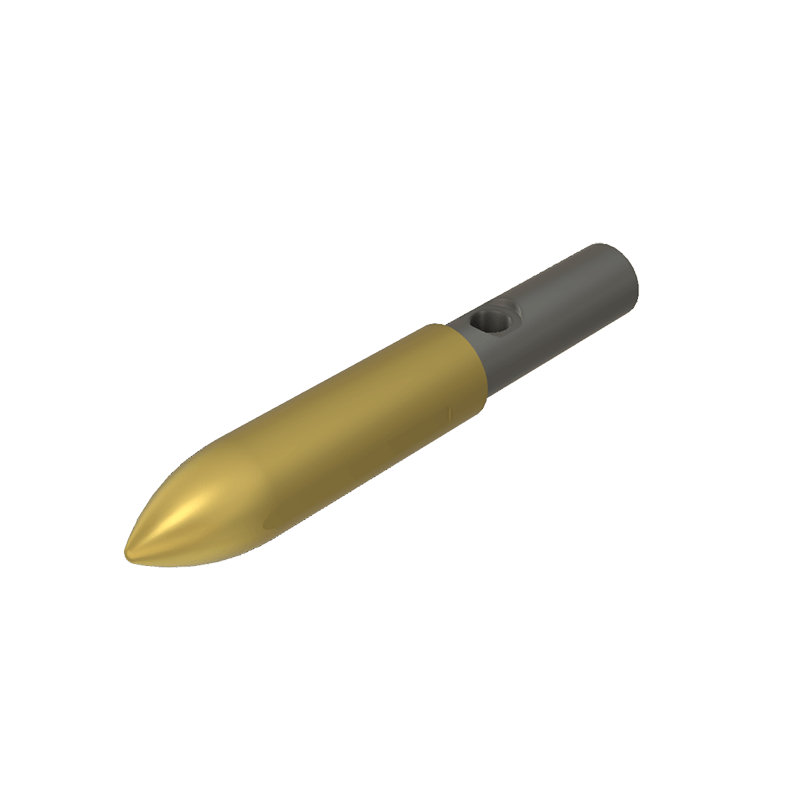

FREER NAAMS Locating Pin APE196ST
Material: A2 Steel and hardened to 58-62hRC *M2 coated pins available, per quote only*
Titanium nitride added in
Retractable side hole
WT. kg: 0.24
