Brand: FREER NAAMS
NAAMS Base Plate ALV110
SKU: FN-ALV110
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
*This product can only be purchased with a shipping account. We apologize for the inconvenience.*
Short Description
Crafted with superior materials, the ALV110 base plate from Freer's NAAMS peripheral components boasts impressive dimensions of ~230mm x 152.4mm x 12.7, making it a reliable choice for your needs. With (3) M12x1.75x38 threads, (4) Ø14.2mm thru holes, and (3) Ø13mm thru holes, this base plate is a must-have for any project.
*Parts come unfinished. For paint or black oxide, please contact our Sales Dept for a quote.*
Full Description

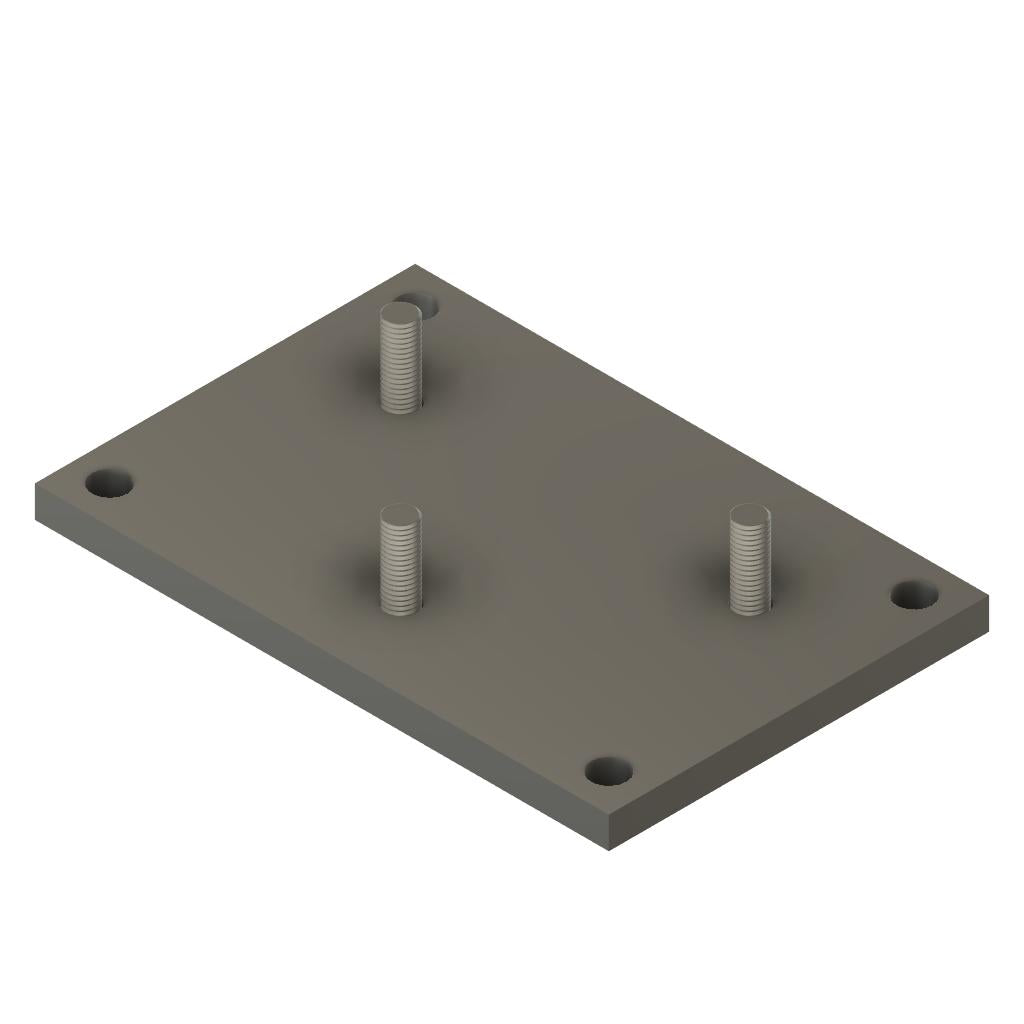

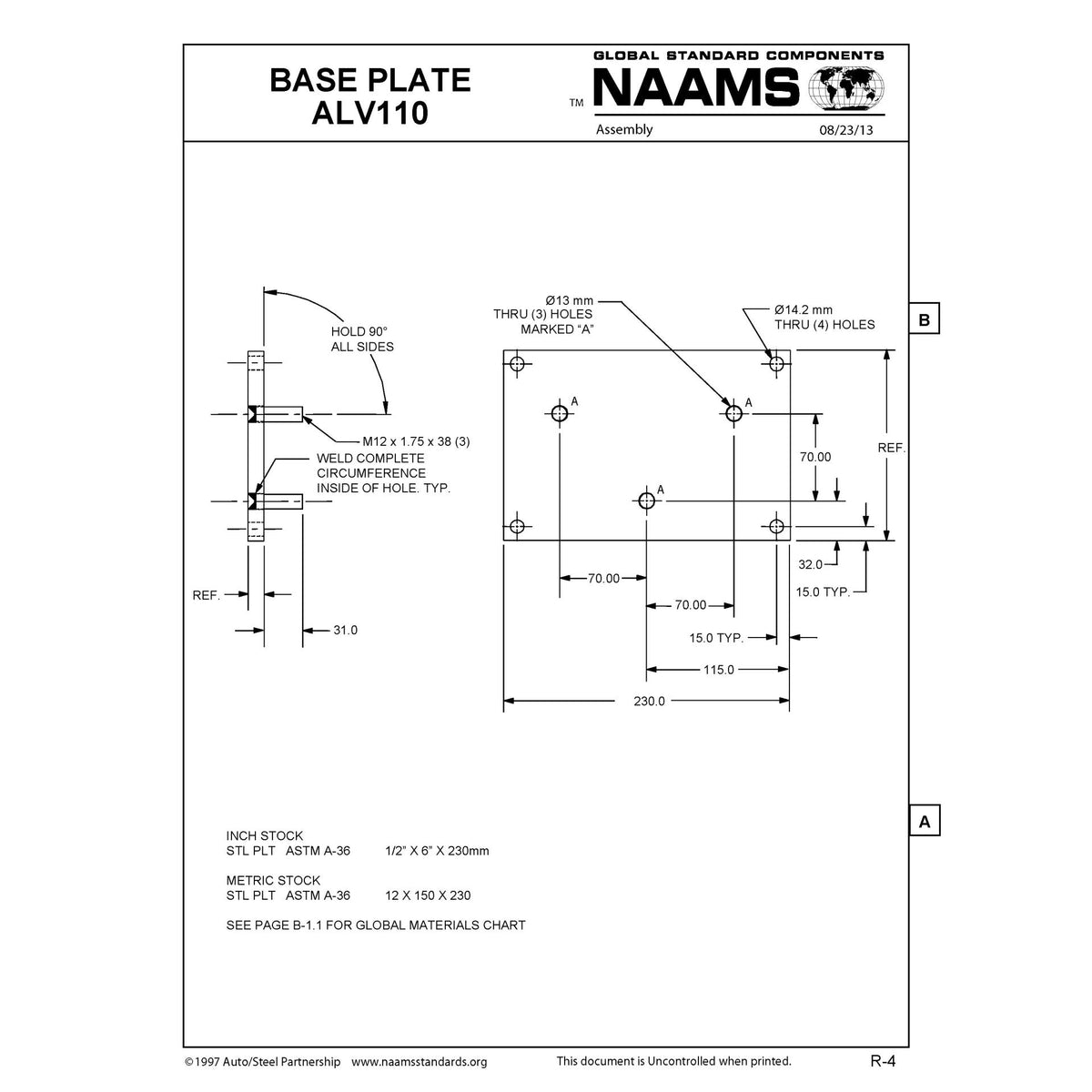

FREER NAAMS PERIPHERAL COMPONENTS ALV110 BASE PLATE
Material: ASTM A-36
Dimensions: ~230mm x 152.4mm x 12.7
Standard Stock - 1/2" x 6" x9"
(3) M12x1.75x38 threads
(4) Ø14.2mm thru holes
(3) Ø13mm thru holes
*Parts come unfinished. For paint or black oxide, please contact our Sales Dept for a quote.*
