Brand: Align

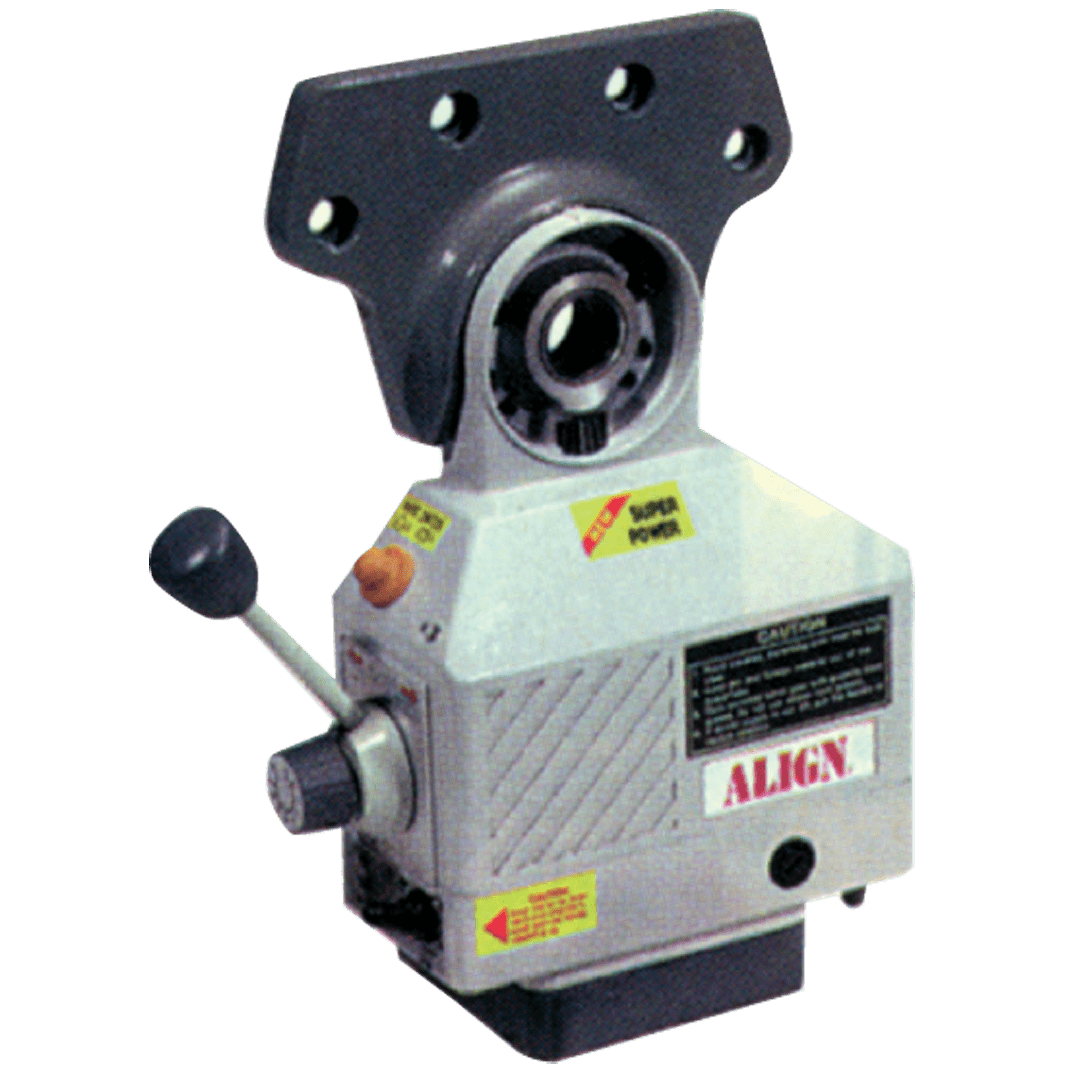

Align JD30AL500SX Table Power Feed - Model AL500SX; X-Axis

SKU: FTS-JD30AL500SX
MPN: AL-500PX

$630.15
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Align AL-500PX Table Power Feed - Model AL500SX; X-Axis

Full Description

Axis	X	Maximum Peak Torque	780"
For Use With	Bridgeport Style Mills	Weight	15 lbs
Gear Rate	4.8:1

• Easily mounts to almost any Bridgeport type knee mill, no modification necessary. Circuit panel is designed to accept replaceable insert type connectors. Nylon clutch has built-in torque release to prevent damage in the case of too much resistance. Standard equipment includes: On/off switch, forward, reverse, rapid traverse, jog button, 8' line cord, plug & mounting hardware. • Speed range: 0 to 160 RPM • Bevel Drive Gear Rate: 4.8:1 • Torque rating: 780 IN-LB (900Kgf/cm) • Power: 1 Amp/1 Phase/110 Volt • Weight: 15 lbs.
