Brand: FREER NAAMS
NAAMS Flat Bracket AFB209
SKU: FN-AFB209
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Looking for CAD models?
Request NAAMS CAD Models
Request NAAMS CAD Models
Short Description

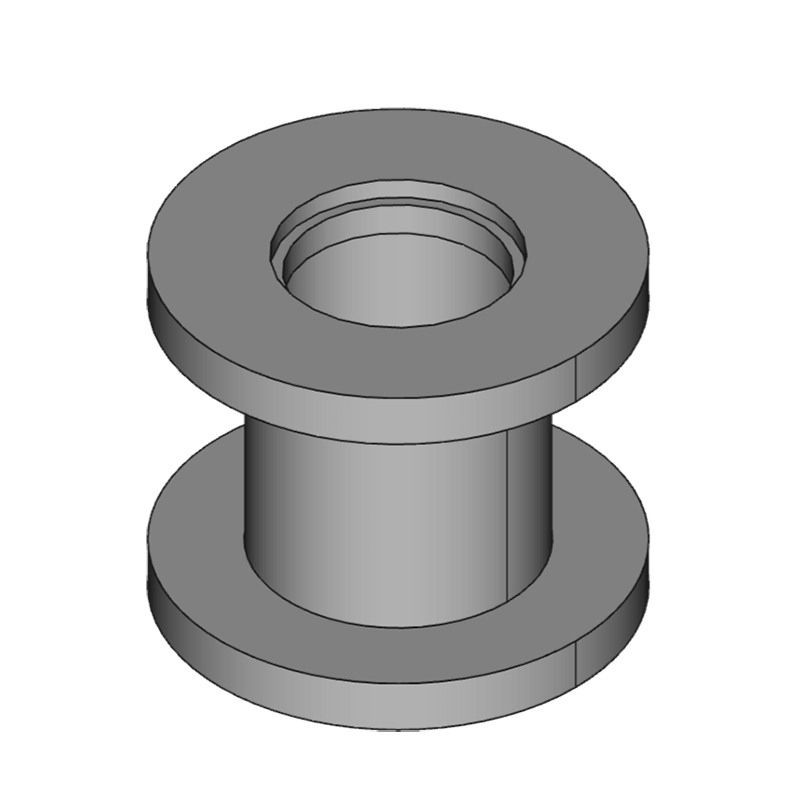

Freer NAAMS flat bracket AFB209 is made from ASTM A-36 and A-513 steel with a 160mm bolt circle on wrist. Height is 350mm weighing in at 14.3kg.Full Description

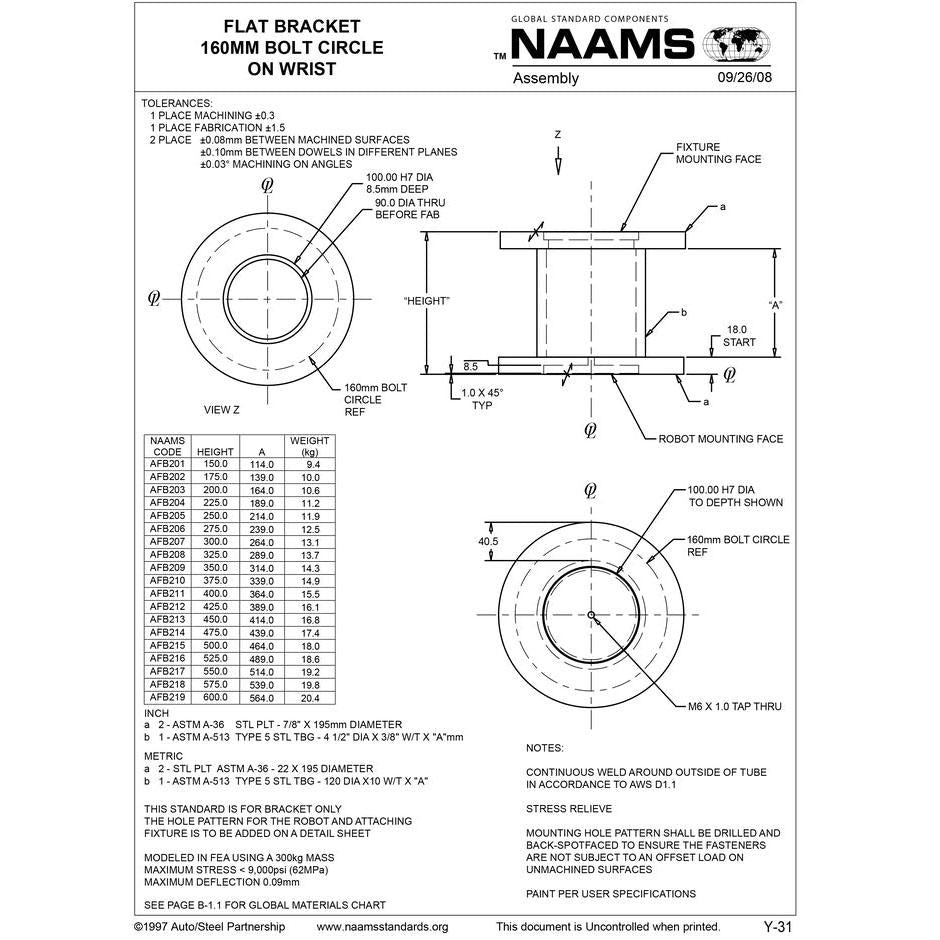

FREER NAAMS FLAT BRACKET AFB209
160mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 22 x 195mm Dia, b - 120 Dia x 10mm W/T x "A"
Height: 350mm
A: 314mm
Wt. kg: 14.3
