Brand: FREER NAAMS

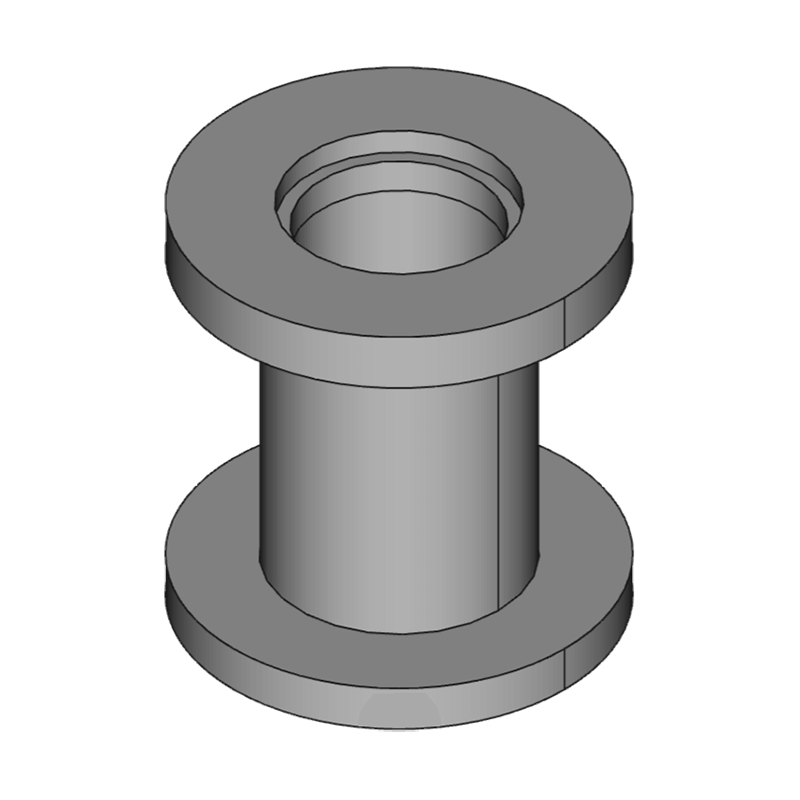

NAAMS Flat Bracket AFB118
SKU: FN-AFB118
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**
Request NAAMS CAD Models
Short Description
Experience the impressive strength and durability of our NAAMS Flat Bracket AFB118 with a 125mm bolt circle, made from high-quality ASTM A-36 steel plate and A-513 type 5 steel tubing. Measuring 20 x 150mm and 90 x 10mm, with a height of 575mm and a weight of 13.4kg, this bracket is the perfect solution for your industrial needs. Trust in its reliability and performance to elevate your projects to new heights!
Full Description

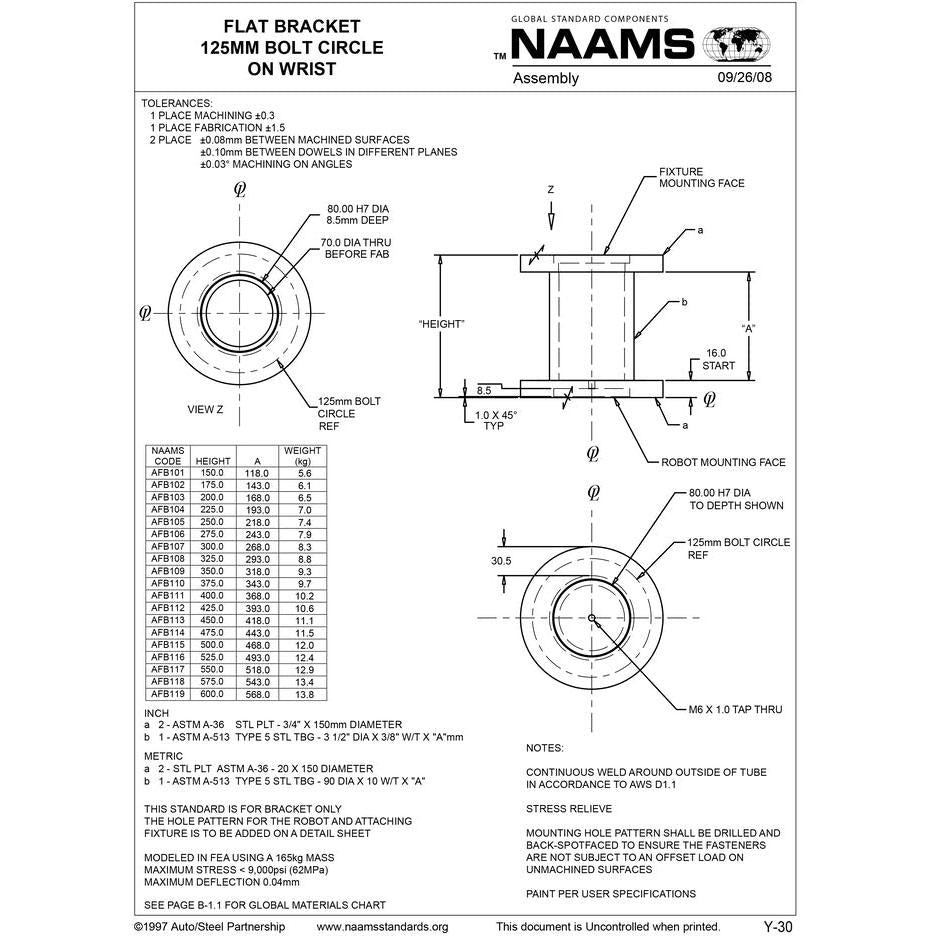

FREER NAAMS FLAT BRACKET AFB118
125mm Bolt Circle on Wrist
Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing
Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"
Height: 575mm
A: 543mm
Wt. kg: 13.4
