Brand: FREER NAAMS

NAAMS Flat Bracket AFB113

SKU: FN-AFB113
MPN: AFB113

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

Experience the superior quality of the NAAMS Flat Bracket AFB113, featuring a 125mm bolt circle and a sturdy construction of ASTM A-36 steel plate and A-513 type 5 steel tubing. With dimensions of 20 x 150mm and 90 x 10mm, and an impressive height of 450mm, this bracket weighs only 11.1kg. Trust in this bracket to provide the support and stability you need for any project.

Full Description

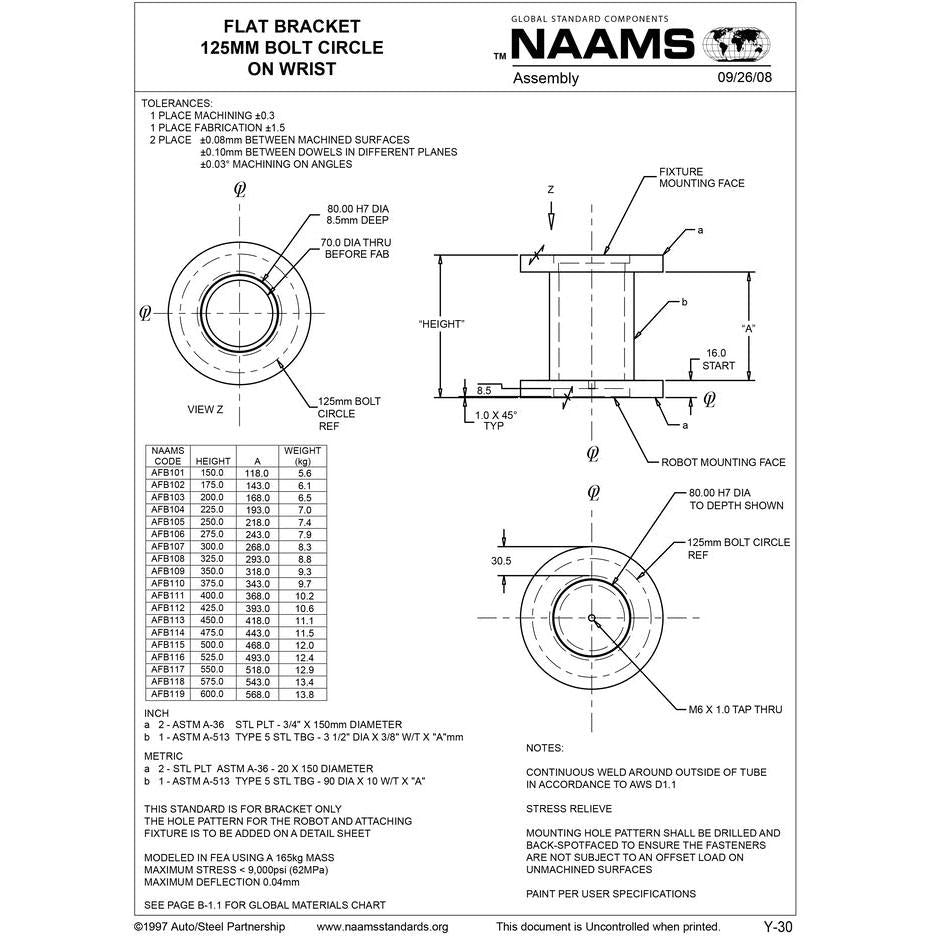

FREER NAAMS FLAT BRACKET AFB113

125mm Bolt Circle on Wrist

Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing

Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"

Height: 450mm

A: 418mm

Wt. kg: 11.1
