Brand: FREER NAAMS

NAAMS Flat Bracket AFB105

SKU: FN-AFB105
MPN: AFB105

Unit price per

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*In-Stock NAAMS will ship within 1-5 business days. Otherwise lead times are at least 2-4 weeks.*
**If timing is critical, please call 586-463-3200 to discuss time-frame before placing your order.**

Looking for CAD models?
Request NAAMS CAD Models

Short Description

Enhance your production with NAAMS Flat Bracket AFB105, boasting a sturdy wrist material of ASTM A-36 steel plate and ASTM A-513 type 5 steel tubing. With dimensions of 20 x 150mm Dia for part a and 90 Dia x 10mm W/T x 218mm for part b, and a height of 250mm, this 125mm Bolt Circle bracket is a must-have for any manufacturing needs.

Full Description

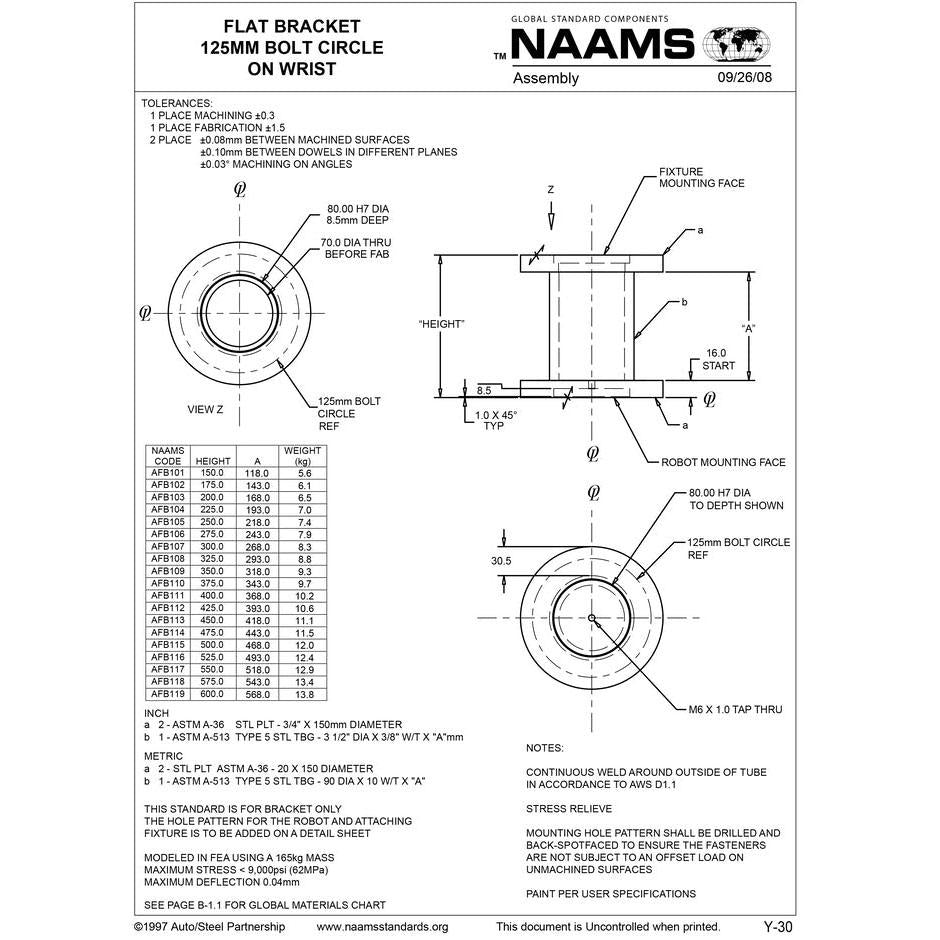

FREER NAAMS FLAT BRACKET AFB105

125mm Bolt Circle on Wrist

Material: a - ASTM A-36 Steel Plate, b - ASTM A-513 Type 5 Steel Tubing

Dimensions: a - 20 x 150mm Dia, b - 90 Dia x 10mm W/T x "A"

Height: 250mm

A: 218mm

Wt. kg: 7.4
