Brand: Dorian

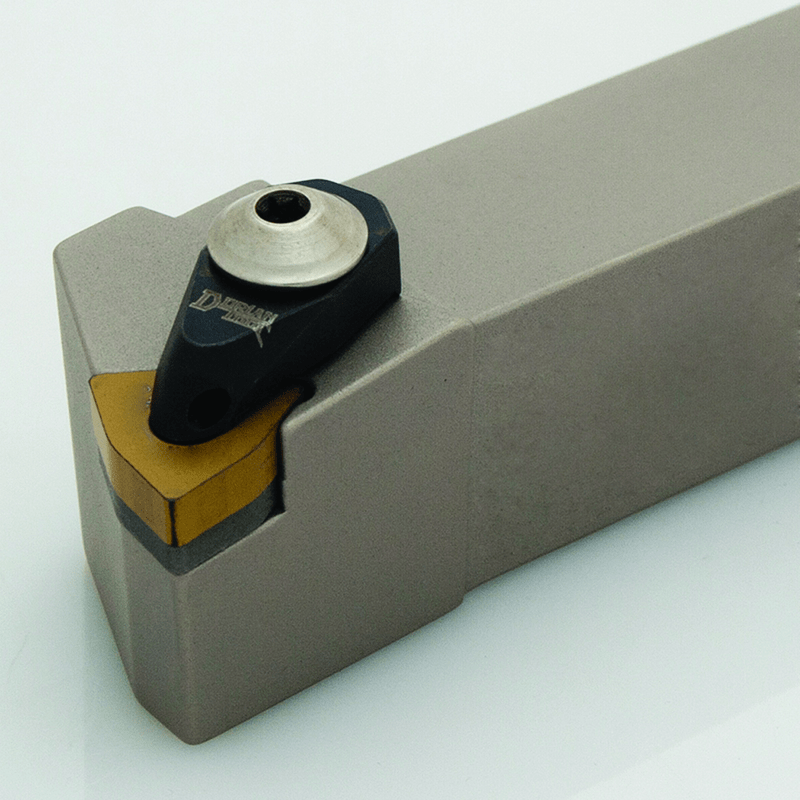

Dorian FL4553099 ADWLNR-16-4D-1" SH -Turning Toolholder
SKU: FTS-FL4553099
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 53099 ADWLNR-16-4D-1" SH -Turning ToolholderFull Description
| Shank Height (H) | 1" | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 1" | Master Insert Identification (MIID) | WNM_432 |
| Overall Length (OAL) | 6" | Coolant Supply Property (CSP) | Internal |
| Connection Diameter Machine Side (DCONMS) | 1" | End Chamfer Angle (ECA) | 5 Degrees |
| Inscribed Circle Diameter (IC) | 1/2" | Tool Type | Turning Toolholders-Coolant Thru |
| Minimum Bore Diameter (DMIN) | 1" | Insert Style | 6.000 |
• Style L • Negative 5° End or Side Cutting Edge Angle for Negative 80° Trigon WNM_ Inserts
