Brand: Iscar

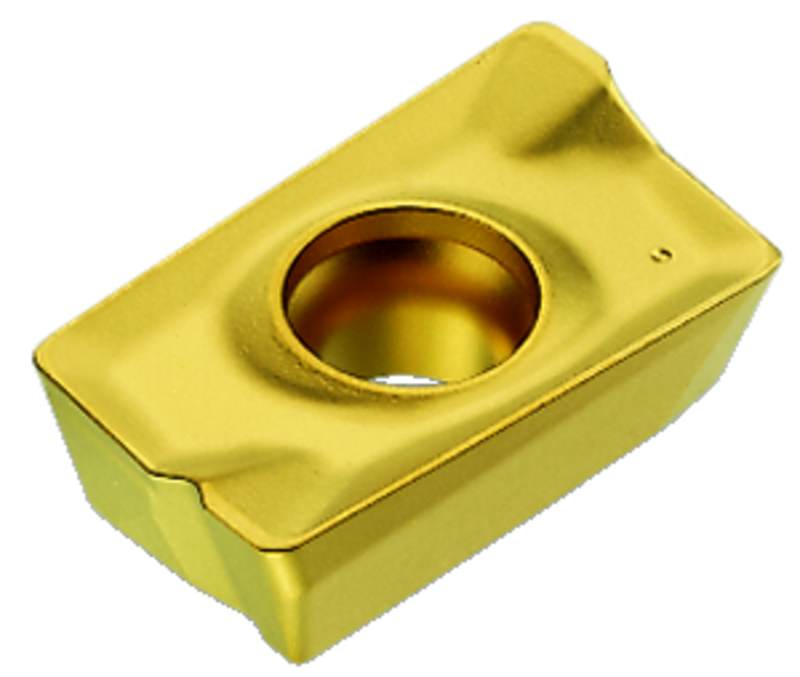

Iscar EH5601455 ADMT 1503PDR-HM IC328
SKU: FTS-EH5601455
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5601455 ADMT 1503PDR-HM IC328Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Coating | TiCN |
| Application | | Counter Boring | Countersinking | Facing | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Grade | IC328 |
| Cutting Edge Length (L) | 0.591" | Shape | 85° Parallelogram |
| Insert Length (INSL) | 0.591" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315" | Tool Type | Single sided Inserts |
| Insert Width (W1) | 3/8" | Measurement Type | Inch |
| Insert Thickness (S) | 0.15" | Body Material | Carbide |
Family Description
HELIMILL general use milling insert
