Brand: Iscar

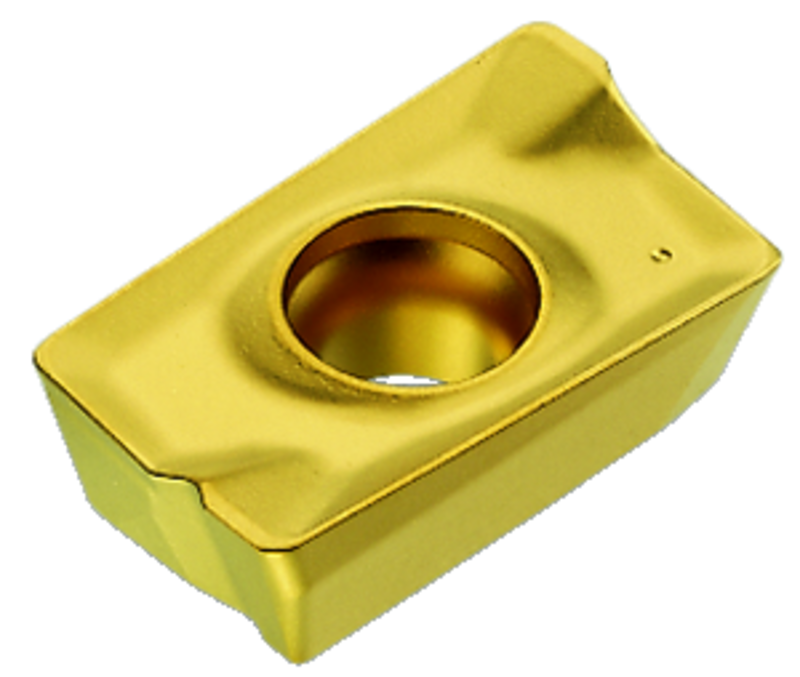

Iscar EH5601274 ADKT 1505PDTR-76 IC520M
SKU: FTS-EH5601274
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5601274 ADKT 1505PDTR-76 IC520MFull Description
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | IC520M |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Shape | 85° Parallelogram |
| Cutting Edge Length (L) | 0.62" | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Insert Length (INSL) | 0.62" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0394" | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.472" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Width (W1) | 0.376" | Cutting Edge Effective Length (LE) | 0.547" |
| Insert Thickness (S) | 0.222" | Measurement Type | Inch |
| Coating | TiCN | Body Material | Carbide |
Family Description
HELIMILL general use milling insert with reinforced helical cutting edges and ribs on the rake face to reduce heat transfer. Used for interrupted cuts and heavy machining.
