Brand: Iscar

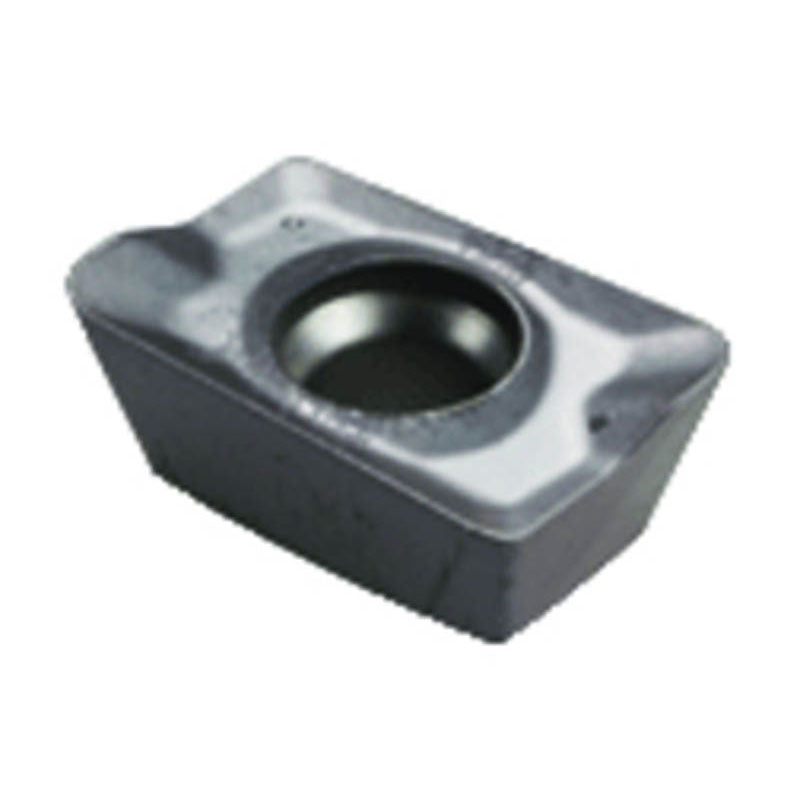

Iscar EH5697878 ADKT 150516R-HM IC928
SKU: FTS-EH5697878
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5697878 ADKT 150516R-HM IC928Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Insert Style | ADKT |
| Cutting Edge Length (L) | 0.614" | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Insert Length (INSL) | 0.614" | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.063" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.472" | Tool Type | Single sided Inserts |
| Insert Width (W1) | 0.377" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Thickness (S) | 0.22" | Cutting Edge Effective Length (LE) | 0.545" |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | IC928 | Body Material | Carbide |
Family Description
HELIMILL inserts with 2 helical cutting edges and various corner radii for general use.
For inserts with corner radii larger than .079", the cutter body and seats should be modified Inserts with corner radii larger than .031" should be used on ADK & SM tools only on the face of the cutter.
