Brand: Iscar

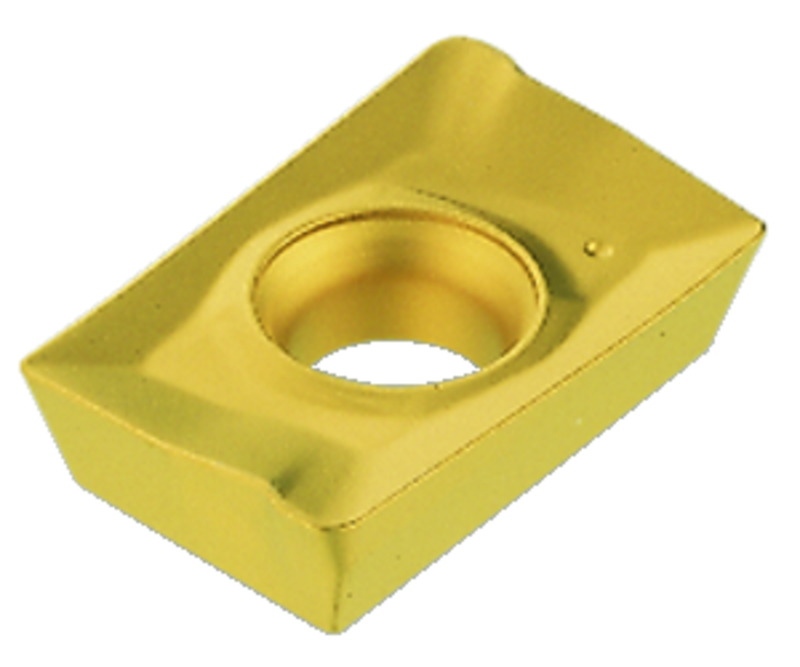

Iscar EH5692417 ADKR 1505PDR-HM IC928
SKU: FTS-EH5692417
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5692417 ADKR 1505PDR-HM IC928Full Description
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Shape | 85° Parallelogram |
| Application | | Bottom Shouldering | Counter Boring | Facing | Milling Inserts | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Cutting Edge Length (L) | 0.628" | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.628" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315" | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.472" | Minimum Feed per Tooth (fz(min)) | 0.0027 "/tooth |
| Insert Width (W1) | 0.378" | Cutting Edge Effective Length (LE) | 0.555" |
| Insert Thickness (S) | 0.236" | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC928 |
Family Description
Super positive inserts for machining aluminum, stainless steel and high temperature alloys.
