Brand: HALDER

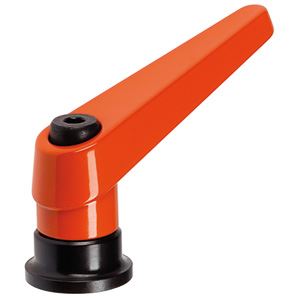

ADJUSTABLE CLAMPING LEVERS - 24420.0230
SKU: EH-24420.0230
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Adjustable Clamping Levers, with axial bearing, with screw | d1=25 mm / d2=M10 / l1=29 mm / orange | 24420.0230Halder 24420.0230 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Advantages of axial bearing:
- Double clamping force with same lever size, by reducing the surface friction.
- Protection of workpiece by a fixed locating surface.
- Little setting due to higher pre-clamping force of bolt, e.g. thread.
Material
Lever
- Zinc die-cast, plastic coated, orange similar to RALá2004, matt structure
Inner parts
- Steel, nitrided, blackened
Screw
- Steel, nitrided, blackened
Operation
By lifting the lever the serrations are disengaged. The lever can be positioned by the serrations. On releasing the lever, the serrations are automatically re-engaged.
