ACTEK AK58400 Stainless Steel Hoist Rings 2-4-1/2 15000 LBS 2.96IN THREAD PROJ.

Short Description

Experience the strength and reliability of the ACTEK AK58400 Stainless Steel Hoist Rings. Built with high quality 300 series stainless steel, these rings can handle a rated load of 15000 lbs with a safety factor of 5:1. The 2"-4-1/2 thread size and 2.96 inch thread projection make it perfect for a variety of lifting tasks. With a U-bar radius of 2.25 inches and height of 5.91 inches, these rings offer exceptional stability and performance. Don't settle for less, choose the best - ACTEK hoist rings! And don't forget to add the 400 ft-lbs torque and 36 lb weight to your arsenal of lifting power. Upgrade now and experience the difference.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK58400 Stainless Steel Hoist Rings 2-4-1/2 15000 LBS

• Actek swivel hoist rings are designed for lifting. They rotate and pivot to absorb any pitch, roll or sway of unbalanced loads. Will not yield to heavy side loads. Help prevent the lifting hook from disengaging.
• Safety Engineered. All loads lifted are especially important from a safety standpoint. Actek swivel hoist rings provide the kind of safety that protects men and material against accidents before they occur.
• For use in outdoor weather and certain chemical and corrosive environments.
• Material : 300 Series Stainless Steel.
• Safety Factor : 5:1.
• Liquid Penetrant MIL 6866.

Replacement Screw P/N: 58450

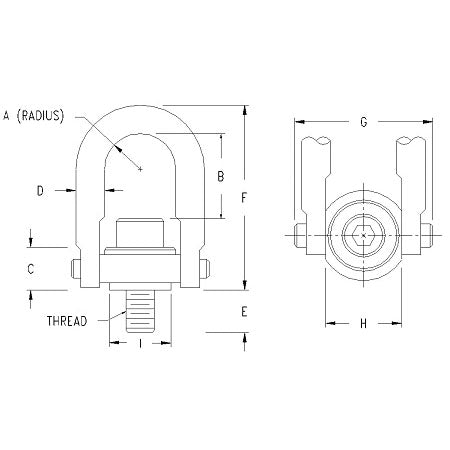

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK58400	2" - 4 1/2	2.96 in	15000 lbs	2.25 in	5.91 in	2.81 in	1 3/4 in	12.47 in	8.55 in	4.87 in	400 ft-lbs	36 lbs	58450	4.15 in
