Brand: Actek

ACTEK AK58202 Stainless Steel Hoist Rings 7/8-9 4000 LBS 1.04IN THREAD PROJ. STANDARD U-BAR

SKU: AK-AK58202
MPN: AK58202

$502.10
Unit price per
Save $18.05

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

ACTEK AK58202 Stainless Steel Hoist Rings 7/8-9 4000 LBS 1.04IN THREAD PROJ. STANDARD U-BAR. Thread Size: 7/8" - 9 Thread Length (E): 1.04 in Rated Load: 4000 lbs U-bar Radius: 1.4 in U-bar Height: 2.93 in U-bar Diameter: 1 in Bushing Head Diameter: 2.2 in Safety Factor: 5:1 Torque: 80 ft-lbs Weight: 7 lbs Material: 300 Series Stainless Steel|316 Stainless Steel Replacement Screw P/N: 58242

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK58202 Stainless Steel Hoist Rings 7/8-9 4000 LBS

Actek swivel hoist rings are designed for lifting. They rotate and pivot to absorb any pitch, roll or sway of unbalanced loads. Will not yield to heavy side loads. Help prevent the lifting hook from disengaging.
Safety Engineered. All loads lifted are especially important from a safety standpoint. Actek swivel hoist rings provide the kind of safety that protects men and material against accidents before they occur.
For use in outdoor weather and certain chemical and corrosive environments.
Material : 300 Series Stainless Steel.
Safety Factor : 5:1.
Liquid Penetrant MIL 6866.

Manufacturer: Actek Manufacturing & Engineering

Part Number: AK58202

Description: Standard U-Bar

Thread Size: 7/8" - 9

Thread Length (E): 1.04 in

Rated Load: 4000 lbs

U-bar Radius: 1.4 in

U-bar Height: 2.93 in

U-bar Diameter: 1 in

Bushing Head Diameter: 2.2 in

Safety Factor: 5:1

Torque: 80 ft-lbs

Weight: 7 lbs

Material: 300 Series Stainless Steel|316 Stainless Steel

Replacement Screw P/N: 58242

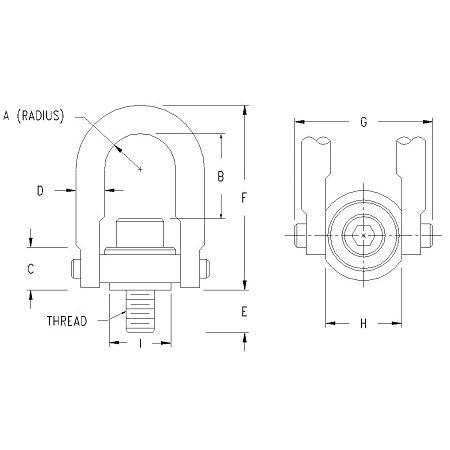

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK58202	7/8" - 9	1.04 in	4000 lbs	1.4 in	2.93 in	1.71 in	1 in	6.52 in	5.14 in	3 in	80 ft-lbs	7 lbs	58242	2.2 in
