ACTEK AK58010 Stainless Steel Hoist Rings 1/2-13 1250 LBS 1.03IN THREAD PROJ. STANDARD U-BAR

Short Description

Experience the unbeatable strength and durability of the ACTEK AK58010 Stainless Steel Hoist Rings. With a thread size of 1/2"-13 and a thread length of 1.03 inches, this product can withstand a rated load of 1250 lbs. The specially designed U-bar boasts a radius of 0.88 inches, a height of 2.31 inches, and a diameter of 3/4 inches, ensuring a secure and sturdy hold. Made from premium-grade 300 series stainless steel, this hoist ring is built to last and can handle tough tasks with ease. Trust in its 5:1 safety factor and confidently use it with a torque of 14 ft-lbs. Don't settle for less, choose the best with the ACTEK AK58010 Stainless Steel Hoist Rings.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK58010 Stainless Steel Hoist Rings 1/2-13 1250 LBS

• Actek swivel hoist rings are designed for lifting. They rotate and pivot to absorb any pitch, roll or sway of unbalanced loads. Will not yield to heavy side loads. Help prevent the lifting hook from disengaging.
• Safety Engineered. All loads lifted are especially important from a safety standpoint. Actek swivel hoist rings provide the kind of safety that protects men and material against accidents before they occur.
• For use in outdoor weather and certain chemical and corrosive environments.
• Material : 300 Series Stainless Steel.
• Safety Factor : 5:1.
• Liquid Penetrant MIL 6866.

Replacement Screw P/N: 58050

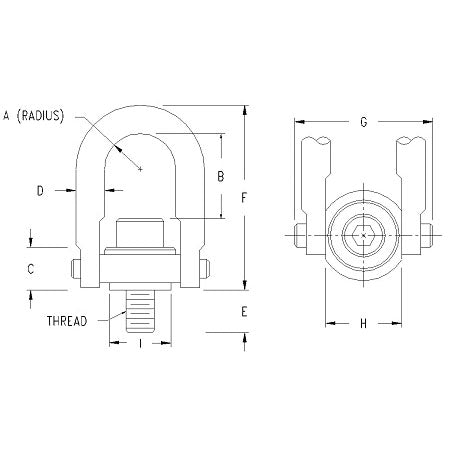

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK58010	1/2" - 13	1.03 in	1250 lbs	0.88 in	2.31 in	1.22 in	3/4 in	4.78 in	3.52 in	1.99 in	14 ft-lbs	2.6 lbs	58050	1.45 in
