ACTEK AK58008 1/2-13 1250 LBS Stainless Steel Hoist Rings 0.78IN THREAD PROJ.

Short Description

Presenting the ACTEK AK58008 1/2-13 1250 LBS Stainless Steel Hoist Rings 0.78IN THREAD PROJ.! Complete with a secure 1/2"-13 thread size, 0.78 inche thread length, and a strong 1250 lbs rated load, this hoist ring is a top choice for heavy lifting needs. The U-bar radius of 0.88 in, height of 2.31 in, and diameter of 3/4 in provide exceptional strength and durability. The 300 Series Stainless Steel material and 5:1 safety factor ensure maximum safety and reliability. And with a torque of 14 ft-lbs and weight of only 2.6 lbs, this hoist ring is a convenient and powerful tool for any job. Don't forget to check out the optional replacement screw P/N: 58048 for added versatility. Upgrade your lifting game with the ACTEK AK58008 today!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK58008 1/2-13 1250 LBS Stainless Steel Hoist Rings

• Actek swivel hoist rings are designed for lifting. They rotate and pivot to absorb any pitch, roll or sway of unbalanced loads. Will not yield to heavy side loads. Help prevent the lifting hook from disengaging.
• Safety Engineered. All loads lifted are especially important from a safety standpoint. Actek swivel hoist rings provide the kind of safety that protects men and material against accidents before they occur.
• For use in outdoor weather and certain chemical and corrosive environments.
• Material : 300 Series Stainless Steel.
• Safety Factor : 5:1.
• Liquid Penetrant MIL 6866.

Replacement Screw P/N: 58048

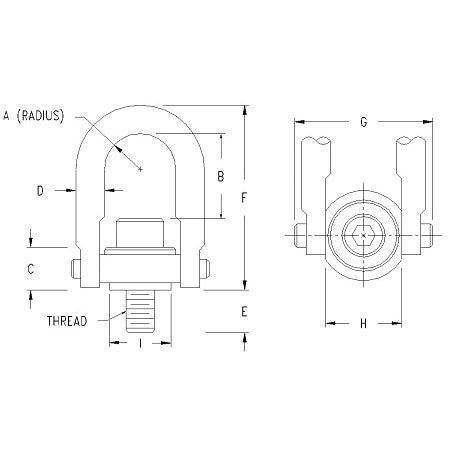

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK58008	1/2" - 13	0.78 in	1250 lbs	0.88 in	2.31 in	1.22 in	3/4 in	4.78 in	3.52 in	1.99 in	14 ft-lbs	2.6 lbs	58048	1.45 in
