ACTEK AK58006 Stainless Steel Hoist Rings 5/8-11 2000 LBS 1.28IN THREAD PROJ. STANDARD U-BAR

Short Description

This rugged ACTEK AK58006 Stainless Steel Hoist Ring boasts a 5/8"-11 thread size and supports a maximum weight of 2000 lbs with a 5:1 safety factor! The U-bar measures 0.88 in radius, 2.18 in height, and 3/4 in diameter, providing reliable and durable anchoring for heavy-duty lifting. With a 1.28 in thread length and a replacement screw included, this hoist ring is a perfect fit for your lifting needs. Made with premium 300 series stainless steel, it delivers unmatched strength and corrosion resistance. Maximize your efficiency and safety with this essential tool.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK58006 Stainless Steel Hoist Rings 5/8-11 2000 LBS

• Actek swivel hoist rings are designed for lifting. They rotate and pivot to absorb any pitch, roll or sway of unbalanced loads. Will not yield to heavy side loads. Help prevent the lifting hook from disengaging.
• Safety Engineered. All loads lifted are especially important from a safety standpoint. Actek swivel hoist rings provide the kind of safety that protects men and material against accidents before they occur.
• For use in outdoor weather and certain chemical and corrosive environments.
• Material : 300 Series Stainless Steel.
• Safety Factor : 5:1.
• Liquid Penetrant MIL 6866.

Replacement Screw P/N: 58046

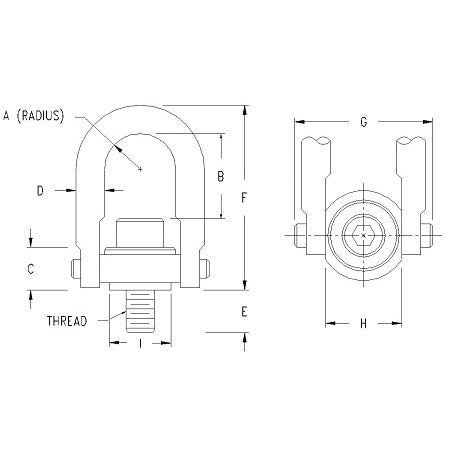

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK58006	5/8" - 11	1.28 in	2000 lbs	0.88 in	2.18 in	1.22 in	3/4 in	4.78 in	3.52 in	1.99 in	30 ft-lbs	2.6 lbs	58046	1.45 in
