Brand: Actek
ACTEK AK56948 FORGED SWIVEL HOIST RING M24 X 3.00 4200 KG 40MM THREAD PROJ.
SKU: AK-AK56948
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
This forged swivel hoist ring from ACTEK (AK56948) boasts impressive specifications, including a M24 x 3.00 thread size, 40mm thread length, and a weight capacity of 4,200 kg. With a 360° swivel angle and 180° pivot angle, this ring offers versatility and safety, and the 5:1 safety factor adds peace of mind. Made with high-quality alloy steel and finished with Phosphate Per DOD-P-16232F, this ring is built to last and perform at its best. Thread Length: 40 mm; Rated Load: 4,200 kg; Torque: 311 Nm; Weight: 9 lbs.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
AK56948 Forged Swivel Hoist Rings M24 X 3.00 4200 KG
- Swivels 360° - Pivots 180°
- Material : Alloy Steel
- Finish : Phosphate Per DOD-P-16232F (Cadmium Plated, Electroless Nickel, & Galvanized Available)
- Safety Factor : 5:1
- Magnetic Particle inspected
- Certified Heat Treatment

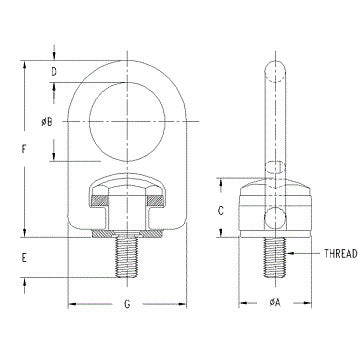

| Part Number | Thread Size | Thread Protrusion - (E) | Rated Load | A | B | C | D | F | G | Torque | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AK56948 | M24 x 3.00 | 40 mm | 4,200 kg | 2.73 in | 3.20 in | 2.64 in | 1.00 in | 7.58 in | 5.40 in | 311 Nm | 9 lbs |
