ACTEK AK56938 FORGED SWIVEL HOIST RING M20 X 2.50 2150 KG 40MM THREAD PROJ.

Short Description

Introducing the ACTEK AK56938 FORGED SWIVEL HOIST RING, your go-to for heavy lifting! With a strong and durable alloy steel construction and phosphate finish, this ring can handle a load of 2,150 kg with a safety factor of 5:1. Its M20 x 2.50 thread and 40 mm thread length ensure a secure connection while its 360° swivel angle and 180° pivot angle provide maximum flexibility. Plus, with only 4 lbs of weight and 135 Nm of torque, this ring is a lightweight powerhouse. Trust the AK56938 for all your lifting needs!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK56938 Forged Swivel Hoist Rings M20 X 2.50 2150 KG

• Swivels 360° - Pivots 180°
• Material : Alloy Steel
• Finish : Phosphate Per DOD-P-16232F (Cadmium Plated, Electroless Nickel, & Galvanized Available)
• Safety Factor : 5:1
• Magnetic Particle inspected
• Certified Heat Treatment

Finish: Phosphate Per DOD-P-16232F (Cadmium Plated, Electroless Nickel, & Galvanized Available)

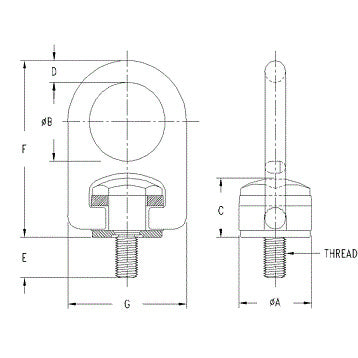

Part Number	Thread Size	Thread Protrusion - (E)	Rated Load	A	B	C	D	F	G	Torque	Weight
AK56938	M20 x 2.50	40 mm	2,150 kg	1.98 in	2.40 in	1.97 in	0.75 in	5.68 in	4.05 in	135 Nm	4 lbs
