ACTEK AK56932 FORGED SWIVEL HOIST RING M16 X 2.00 1900 KG 35MM THREAD PROJ.

Short Description

This ACTEK AK56932 FORGED SWIVEL HOIST RING features a precise thread size of M16 x 2.00 with a thread length of 35 mm. It is capable of handling a heavy load of 1,900 kg with a swivel angle of 360° and pivot angle of 180°. With a safety factor of 5:1 and torque of 80 Nm, this sturdy ring is made from durable alloy steel and finished in phosphate per DOD-P-16232F, making it a reliable and high-quality option for all your hoisting needs.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK56932 Forged Swivel Hoist Rings M16 X 2.00 1900 KG

• Swivels 360° - Pivots 180°
• Material : Alloy Steel
• Finish : Phosphate Per DOD-P-16232F (Cadmium Plated, Electroless Nickel, & Galvanized Available)
• Safety Factor : 5:1
• Magnetic Particle inspected
• Certified Heat Treatment

Finish: Phosphate Per DOD-P-16232F (Cadmium Plated, Electroless Nickel, & Galvanized Available)

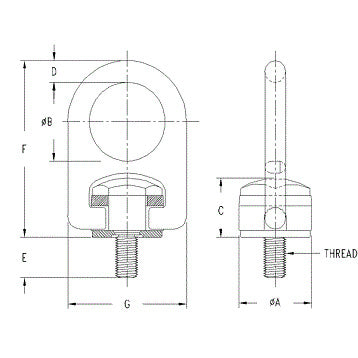

Part Number	Thread Size	Thread Protrusion - (E)	Rated Load	A	B	C	D	F	G	Torque	Weight
AK56932	M16 x 2.00	35 mm	1,900 kg	1.98 in	2.40 in	1.98 in	0.75 in	5.68 in	4.05 in	80 Nm	4 lbs
