Brand: Actek
ACTEK AK56904 FORGED HOIST RING KIT METRIC 3/4 AND 1 U-BAR
SKU: AK-AK56904
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

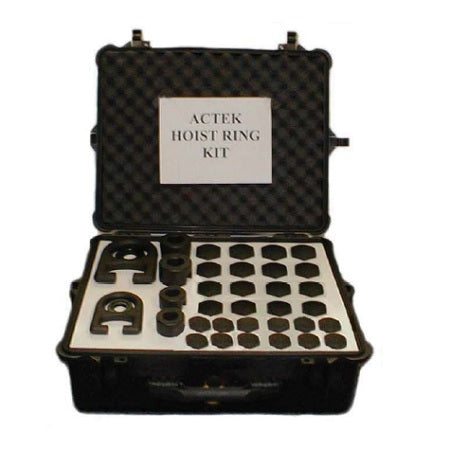

ACTEK AK56904 FORGED HOIST RING KIT METRIC 3/4 AND 1 U-BAR
Experience the precision of ACTEK's AK56904 Forged Hoist Ring Kit Metric, featuring a 3/4-inch and 1-inch U-Bar. This kit includes a metric forged swivel hoist ring designed for seamless lifting operations. With a sturdy 3/4-inch U-Bar and a robust 1-inch U-Bar, this kit offers versatility for various lifting tasks. Trust ACTEK for reliable performance and durability in every application.
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 56904
Description: Metric Forged Swivel Hoist Ring
Sub-Assy: 3/4" U-bar, 1" U-bar
Weight: 85 lbs
Note: Actek Hoist Rings Kits enable you to custom assemble just the right swivel hoist ring for the job. Kits are available in standard and metric sizes. They come complete with U-Bar (body and sub-assembly), screws, bushings, washers, and E-rings - enough to configure over 24 different hoist ring sizes and capacities. A handy accessory kit for lifting and moving heavy loads and a must for your tool crib.
AK56904 METRIC FORGED SWIVEL HOIST RING KIT (KIT INCLUDES 4 OF EACH ITEM) | |||||||
Sub- Assy | Rated Load (Kgs) |
Screw Part Number |
Screw Size | Thread Length (mm) |
Body Part Number |
Washer Part Number |
E-Ring Part Number |
56020 3/4" U-Bar |
1,050 | 54048 | M12x1.75 | 25 | 56030 | 56068 | 46036 |
1,900 | 54056 | M16x2.00 | 25 | 56030 | 56068 | 46034 | |
2,150 | 54054 | M20x2.50 | 25 | 56030 | 56068 | 46038 | |
56220 1" U-Bar |
3,000 | 54244 | M20x2.50 | 30 | 56230 | 56268 | 46038 |
4,200 | 54252 | M24x3.00 | 30 | 56230 | 56268 | 46238 | |
4,200 | 54243 | M30x3.50 | 40 | 56230 | 56268 | 46834 |
