Brand: Actek
ACTEK AK56304 FORGED HOIST RING KIT 3/4 AND 1 U-BAR
SKU: AK-AK56304
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

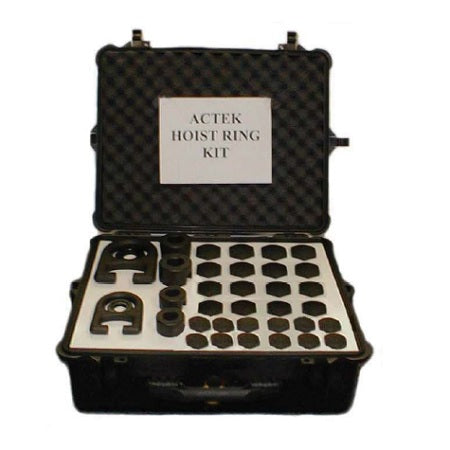

ACTEK AK56304 FORGED HOIST RING KIT 3/4 AND 1 U-BAR
Experience the versatility of ACTEK's AK56304 Forged Hoist Ring Kit, featuring a 3/4-inch and 1-inch U-Bar. This kit includes a forged swivel hoist ring for seamless lifting operations. With a sturdy 3/4-inch U-Bar and a robust 1-inch U-Bar, this kit offers flexibility for various lifting tasks. Trust ACTEK for reliable performance and durability in every application.
Manufacturer: ACTEK® Manufacturing & Engineering
Part Number: 56304
Description: Forged Swivel Hoist Ring
Sub-Assy: 3/4" U-bar, 1" U-bar
Weight: 85 lbs
Note: Actek Hoist Rings Kits enable you to custom assemble just the right swivel hoist ring for the job. Kits are available in standard and metric sizes. They come complete with U-Bar (body and sub-assembly), screws, bushings, washers, and E-rings - enough to configure over 24 different hoist ring sizes and capacities. A handy accessory kit for lifting and moving heavy loads and a must for your tool crib.
AK56304 FORGED SWIVEL HOIST RING KIT (KIT INCLUDES 4 OF EACH ITEM) | |||||||
Sub- Assy | Rated Load (Lbs) |
Screw Part Number |
Screw Size | Thread Length (in.) |
Body Part Number |
Washer Part Number |
E-Ring Part Number |
56020 3/4" U-Bar |
2,500 | 56050 | 1/2"-13 | 1 in | 56030 | 56068 | 46036 |
4,000 | 56044 | 5/8"-11 | 1 in | 56030 | 56068 | 46034 | |
5,000 | 56054 | 3/4"-10 | 1 in | 56030 | 56068 | 46038 | |
56220 1" U-Bar |
7,000 | 56245 | 3/4"-10 | 1-1/4 in | 56230 | 56268 | 46038 |
8,000 | 56243 | 7/8"-9 | 1-1/4 in | 56230 | 56268 | 46234 | |
10,000 | 56250 | 1"-8 | 1-1/4 in | 56230 | 56268 | 46238 |
