Brand: Actek
ACTEK AK46988 Safety Swivel Hoist Rings M72 X 6.0 31500 KG
SKU: AK-AK46988
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience unmatched safety and strength with the ACTEK AK46988 Safety Swivel Hoist Rings M72 X 6.0 31500 KG, a testament to the excellence and unwavering quality of our product. Boasting a thread size of M72 x 6.00 and a thread length of 132 mm, this hoist ring can handle a rated load of 31,500 kg and provides a u-bar radius of 95 mm, u-bar height of 219 mm, and u-bar diameter of 70 mm for optimal performance. With a pivot angle of 180°, swivel angle of 360°, safety factor of 5:1, and torque of 5,830 Nm, this ring ensures utmost safety and reliability. Made of alloy steel and finished with black oxide per MIL Specification for durability, this hoist ring also comes with a replacement screw P/N: 49744, making it the perfect choice for all your heavy-duty lifting needs.
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
AK46988 Safety Swivel Hoist Rings M72 X 6.0 31500 KG

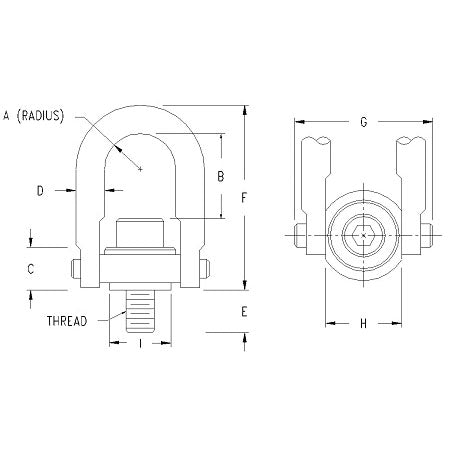

| Part Number | Thread Size | Thread Length (E) | Rated Load | U-bar Radius (A) | U-bar Height (B) | C | D | F | G | H | Torque | Weight | Replacement Screw | Bushing Head Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK46988 | M72 x 6.00 | 132 mm | 31,500 kg | 95 mm | 219 mm | 134 mm | 70 mm | 495 mm | 359 mm | 206 mm | 5,830 Nm | 165 lbs | 49744 | 165 mm |
