ACTEK AK46972 Safety Swivel Hoist Rings M64 X 6.00 22300 KG

Short Description

Experience the unbeatable safety and versatility of ACTEK AK46972 Safety Swivel Hoist Rings! This incredible product features M64 x 6.00 thread size, 101mm thread length, and an impressive 22300 KG rated load, ensuring that your heavy lifting needs are met with ease. With a U-bar radius of 76 mm and a height of 195 mm, you can rely on this hoist ring to handle any task with precision and efficiency. And with a 360° swivel angle and 180° pivot angle, maneuvering your load has never been easier. Made from high-quality alloy steel and finished with black oxide per MIL specification, this hoist ring is built to last. Trust in our 5:1 safety factor and a torque of 2,847 Nm to provide the ultimate safety and security for all your lifting needs. Don't wait any longer - upgrade to the ACTEK AK46972 Safety Swivel Hoist Rings today!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK46972 Safety Swivel Hoist Rings M64 X 6.00 22300 KG

Replacement Screw P/N: 49644

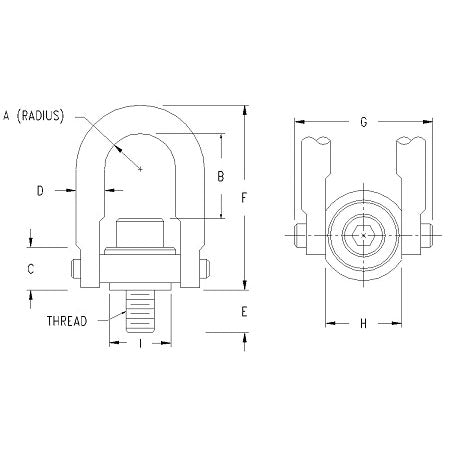

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK46972	M64 x 6.00	101 mm	22,300 kg	76 mm	195 mm	104 mm	57 mm	421 mm	272 mm	166 mm	2,847 Nm	86 lbs	49644	137 mm
