ACTEK AK46970 Safety Swivel Hoist Rings M48 X 5.00 13500 KG

Short Description

Inspire confidence in your lifting equipment with the ACTEK AK46970 Safety Swivel Hoist Rings M48 X 5.00 13500 KG! This thread size of M48 x 5.00 and thread length of 83 mm provide strength and stability for even the toughest jobs. With a rated load of 13,500 kg and a safety factor of 5:1, you can trust in the reliability of this hoist ring. Its sturdy U-bar radius of 58 mm, height of 155 mm, and diameter of 44 mm offer added security, while the swivel angle of 360° and pivot angle of 180° make for easy maneuverability. Crafted from durable alloy steel and finished with black oxide per MIL specification, this hoist ring is built to last. Don't wait any longer to upgrade your equipment - replace your old screws with the reliable 49450 replacement screw and experience the difference!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK46970 Safety Swivel Hoist Rings M48 X 5.00 13500 KG

Replacement Screw P/N: 49450

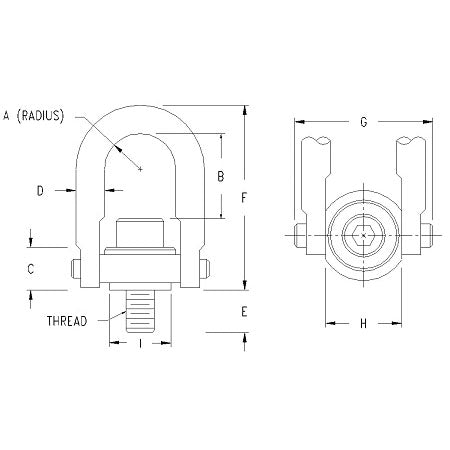

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK46970	M48 x 5.00	83 mm	13,500 kg	58 mm	155 mm	71 mm	44 mm	319 mm	212 mm	124 mm	1,085 Nm	38 lbs	49450	105 mm
