ACTEK AK46958 Safety Swivel Hoist Rings M30 X 3.50 7000 KG 62MM THREAD PROJ. STANDARD U-BAR

Short Description

Experience the ultimate in safety and convenience with the ACTEK AK46958 Safety Swivel Hoist Rings! This incredible product boasts a M30 x 3.50 thread size, 62mm thread projection, and a standard U-bar that provides maximum stability and strength. With a rated load of 7,000 kg and a safety factor of 5:1, you can trust this product to handle even the toughest jobs. The swivel and pivot angles of 360° and 180°, respectively, allow for flexible movement, while the black oxide finish and alloy steel material make for a durable and long-lasting tool. So don't settle for less, upgrade to the ACTEK AK46958 for premium performance and safety. Order now and experience the difference!

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK46958 Safety Swivel Hoist Rings M30 X 3.50 7000 KG

Replacement Screw P/N: 49846

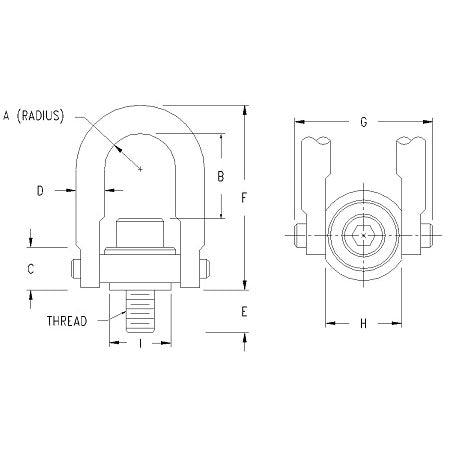

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK46958	M30 x 3.50	62 mm	7,000 kg	45 mm	108 mm	54 mm	32 mm	224 mm	159 mm	96 mm	637 Nm	15 lbs	49846	81 mm
