ACTEK AK46948 Safety Swivel Hoist Rings M24 X 3.00 4200 KG

Short Description

Unlock the full potential of your lifting operations with the ACTEK AK46948 Safety Swivel Hoist Rings. These versatile and durable rings are the ultimate tool for ensuring safe and efficient lifting of heavy loads. With a thread size of M24 x 3.00, thread length of 37 mm, and a whopping rated load of 4,200 kg, these rings are ready to handle even the toughest jobs. And with a swivel angle of 360° and pivot angle of 180°, you'll have no trouble maneuvering your load into place. With a safety factor of 5:1, you can trust in the strength and reliability of these rings. And weighing in at only 7 lbs, they won't add any unnecessary weight to your lifting equipment. Made of high-grade alloy steel and finished with black oxide per MIL specification, these rings are built to last. Don't miss out on this essential tool - order your ACTEK AK46948 Safety Swivel Hoist.

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

AK46948 Safety Swivel Hoist Rings M24 X 3.00 4200 KG

Replacement Screw P/N: 49250

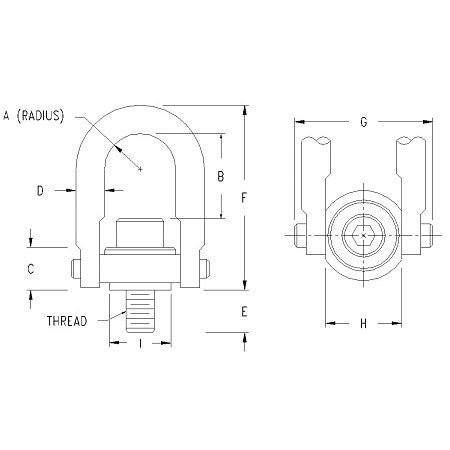

Part Number	Thread Size	Thread Length (E)	Rated Load	U-bar Radius (A)	U-bar Height (B)	C	D	F	G	H	Torque	Weight	Replacement Screw	Bushing Head Diameter
AK46948	M24 x 3.00	37 mm	4,200 kg	36 mm	75 mm	43 mm	25 mm	168 mm	131 mm	76 mm	311 Nm	7 lbs	49250	56 mm
